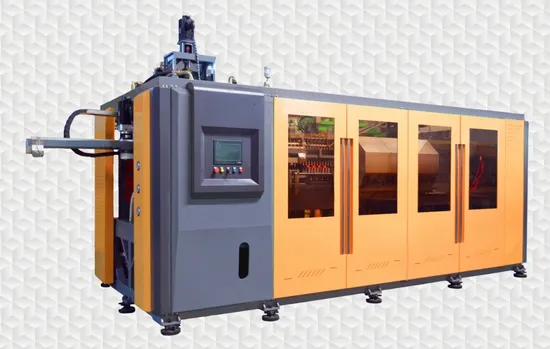

Mineral Water Soft Drink Pet Bottle Blowing Blow Machine
| US$4,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
4-cavity 6-cavity 8-cavity
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
for Year Service
Advantage 1
Strong Frame with Handle More Strong
Suit Product
PP or Pet Bottle
Guarantee
One Year
Delivery Time
30-60day
Model Type
Auto or Semi-Auto Type
Transport Package
Wooden Case
Specification
SB
Trademark
tango
Origin
Zhangjiagang
HS Code
8422301090
Production Capacity
30 Sets Per Month
Product Description
Product description:Automatic pet plastic bottle extrusion blow molding machine price
| Part | Project | Technical Parameters |
Product conditions | The max. volume of the product | 1800ML |
The max. diameter of the product | Φ110 | |
Product bottle neck size | 38 mm | |
The max. height of product | <320mm | |
The max. height of preform | <165mm | |
Preform spacing | 38 mm | |
bottle spacing | 120 mm | |
Mold Standard Thickness | 220mm | |
| (/) Output (bottle/hour) | 12000-14000(500ml)/ bottle | |
Mold cavity | 6 | |
Heating Part | Heating unit | 6 |
Layers of heating lamp | 8 | |
| () Number of germ tube seats (pieces) | 174 | |
Electrical parameters | Voltage | 220/380V |
Frequency | 50/60Hz | |
use power | 40kw/h | |
Installed power | 168 kw | |
| Gas source (PETThe high-pressure air consumption depends on the volume of the PET bottle) | high pressure compressed air | 30-40bar |
High pressure compressed air consumption | 8.0m3/min | |
| (≤12ºC) Cooling water (water temperature ≤12°C) | Pressure | 3bar |
Flow | 5m3/h | |
Weight | \\ Blower \ heating machine \ electric control box, etc. | 7.5 |
Dimension | (L×W×H) Machine(L×W×H) | 6000*2100*2300mm |
| (L×W×H) Preform feeder(L×W×H) | 2850*1550*2600mm |
Blowing machine main configuration
| Product Name | Origin | Brand | |
| (PLC) computer touch screen | China | Inovance | |
Ration servo motor | China | Inovance | |
Variable pitch servo motor | China | Inovance | |
Clamping servo motor | China | Inovance | |
Stretch Servo Motor | China | Inovance | |
Oven servo motor | China | Inovance | |
Servo reducer | Taiwan | Liming | |
Servo reducer | Taiwan | Liming | |
magnetic switch | Taiwan | Yuan Lifu | |
Low voltage electrical appliances | German | Siemens | |
Photoelectric switch | Japan | Omron | |
Throttle valve | Taiwan | AirTAC | |
Blow valve | Italy | Norgren | |
Action valve | Korea | ARK | |
Lift cylinder | Taiwan | AirTAC | |
Manipulator Pneumatic Finger | German | FEST-O | |
Sealing cylinder | Taiwan | Lingde |
SCREW AIR COMPRESSOR+BOOSTER
| item | unit | parameter | remarks |
| model | EMS-10/40W | ||
| Working Medium | air | ||
| compression | screw and piston | ||
| cooling mode | Primary water cooling | Two-stage water cooling | |
| driving mode | Direct transmission | Two-stage belt drive | |
| compression stage | 3 | 1 stage 1 2,3 stage 2 3 | |
| flow | m3/min | 10 | |
| discharge pressure | MPa | 4.0 | gauge pressure |
| suction temperature | ºC | ≤40 | |
| exhaust temperature | ºC | ≤50 | after cooling |
| motor power | KW | 120 | |
| Circulating water flow | T/h | 50T | |
| temperature range | 10ºC 32 ºC | 5ºCTemperature difference of 5 ºC | |
| 10less than 10ºC | Pay attention to anti-freezing measures | ||
| ,inlet and outlet diameter | DN40 | ||
| High pressure exhaust pipe interface | DN40 | ||
| weight | Kg | 5000 | per set |
| Voltage | 380V/50Hz | ||
| motor IP | IP54 |
Mold
