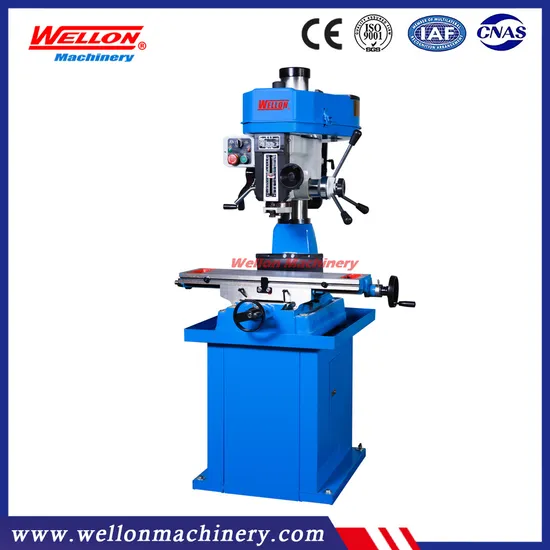

Mini Milling Drilling Machine ZAY7020 Mini Drilling Milling Machine Price

Product Description

Product Description

Product Parameters

Performence Features:
1.Quiet B section belt drive system
2.Milling head rotates 360 on column
3.Extra large 820 x 240mm ground work table with T-slots
4.Adjustable leadscrew nuts eliminating backlash on both axis
5.Fine feed hand wheel operating quill feed
6.Forward and reverse on/off switch
7.3MT spindle with 75mm diameter quill
8.Adjustable table and drill length stops
9.Rack and pinion wind-up head
10.Rear slide-way cover and slide clamps on all axis
11.Spindle lock for quill
12.Table lock on both axis
13.Metric dial graduations @ 0.05mm for X & Y axis
14.Optional power feed fits straight on the table
Technical parameter:

Model	ZAY7020
Drilling capacity	20mm
Face milling capacity	63mm
End milling capacity	20mm
Distance from spindle nose to table	435mm
Min.distance from spindle axis to column	181.5mm
Spindle travel	85mm
Spindle taper	M.T.3 or R8
Step of spindle speed	12
Range of spindle speed 50Hz	100-2200 r.p.m
60Hz	120-2640 r.p.m
Swivel angleof headstock (horizontally)	360
Table size	520/160mm
Forward and backward travel of table	140mm
Left and right travel of table	290mm
Motor Power	0.55KW
Voltage/frequency	As customer's requirement
Net weight/gross weight	130kg/190kg
Packing size	620/750/1000mm
Loading amount	48pcs/20'container

Standard accessories:
Allen srench
Wedge
Tie rod
Optional accessories:
Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Paraller vise
Working lamp
Coolat system
Machine stand and chip tray
