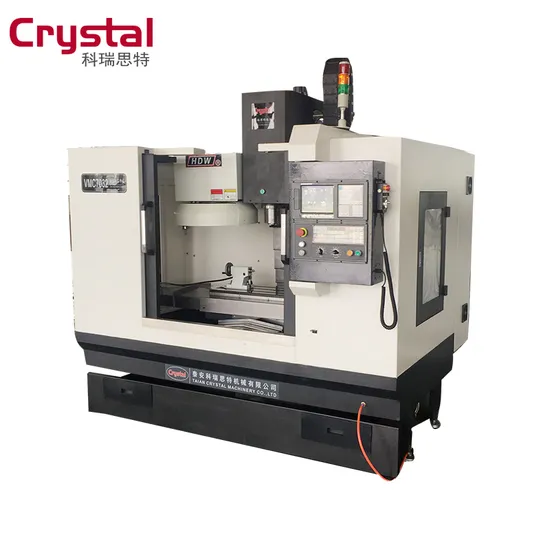

New Design Low Cost CNC Vmc Center Cutting Machine Vmc7032

New Design Low Cost CNC Vmc Center Cutting Machine Vmc7032

US$21,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC7032
Place of Origin
China
Processing Type
Metal
X,Y,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Standard Wooden Package
Specification
CE
Trademark
Crystal
Origin
Shandong
HS Code
8458110090
Production Capacity
25 Sets/Month

Product Description

NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.
new design low cost cnc VMC center cutting machine VMC7032
A. Standard configuration

KND system ( you also can choose Siemens and FANUC control)

Umbrella type tool Magazine, 12 tools

Taiwan BT40 spindle unit

High precision ball screw

Fully-guarded type machine

self-lubrication, coolant system, lighting system


B. Specification

Items

Details

Unit

VMC7132

Table

Size

mm

800×320
(1000×320)

Travel of 3 axis

mm

610/320/400

Max, table load

kg

400

T-slot

Size

mm

3-14

Center distance

mm

100

Spindle

Spindle taper


BT40

Spindle to guide

mm

376

Distance of spindle head to table

mm

130-530

Max speed

rpm

8000

Motor power

KW

3.7/5.5

Spindle drive


Belt transmission

Accuracy

Positioning accuracy

mm

0.02

Repeatability

mm

0.01

Axis motor

Power of X/Y/Z

Kw

1.2/1.6/1.6

Feeding speed

Rapid feed of X/Y/Z

mm/min

1000

Cutting feed of X/Y/Z

mm/min

6000

Parameters

Air pressure

Kgf/cm²

6

Weight

Kg

1900

Dimension

mm

2280*1760*2200

Power


3 phase 380V,





Make you satisfied is our business!
The First Batch in china suppliers to join the ****** Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
