Hot Selling Raycus Fiber 3000wfiber Laser Cutting Machine for Carbon Steel Stainless Steel Aluminum Brass Alloy Metals

Product Description

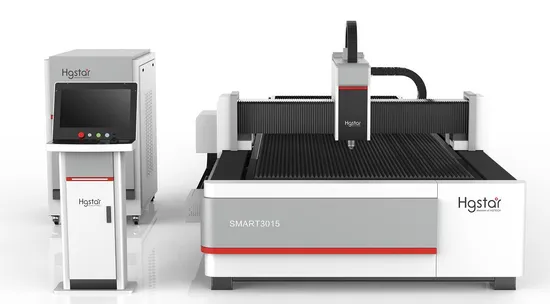

SMART T SERIES Laser Cutting Machines
Overview
The machine adopts self-developed fiber laser, which has strong cutting ability and efficiency. It is a high-end and high-tech fiber laser cutting machine integrating advanced technologies such as laser cutting, precision machinery and numerical control technology.

MODEL	SMART 3015 T	SMART 4015 T	SMART 6015 T
Cutting Area (L×W)	3048mm x 1524mm	4048mm x 1524mm	6048mm x 1524mm
Laser Source	Fiber & 1000W - 6000W
CNC System	FSCUT
Max Moving Speed	120m/min, Acceleration is 1.2G
Position Accuracy (X and Y axis)	0.05mm
Reposition Accuracy (X and Y axis)	0.03mm
Power Supply Requirement	380V 50/60Hz

The Smart 3015Tseries CNC fiber laser cutting machine is a product manufactured by South China University of Technology Xingdong Technology according to international export standards. This series of products is the first choice for the metal material processing industry, with strong cutting ability, flying cutting speed, ultra-high stability, high-quality processing, extremely low operating cost and ultra-high adaptability.
The machine adopts gantry double-drive structure, which has the characteristics of stable structure, good rigidity and high speed. Its X and Y single-axis positioning speed can reach more than 100m/min, and the double-drive acceleration makes the maximum acceleration of X and Y single-axis reach 1.0G.
Excellent function Vibration Suppression
One key quick setting can easily solve the vibration problem of thick plate processing
Intelligent obstacle avoidance Intelligently avoid random raised areas in the cutting process and reduce the risk of head collision

Exclusive tuning database All you need to do is a simple touch,
and the complicated operations are handed over to us
Three point edge finding The inclination angle and origin of sheet metal are sensed through automatic edge-finding to avoid waste and save time
Membrane removal process The sequence of film removal and pre perforation can be set flexibly and make workpiece cutting more perfect
Partition dust removal Through fine setting, the dust removal tuyere can be opened and closed with the movement of the cutting head. Under the same fan configuration, the dust removal effect is effectively enhanced

Advantages:
1.As a whole welded structure, the bed has been aging for many times, which has the advantage of good dynamic response;
2.The transmission is equipped with high-precision and high-efficiency transmission mechanism, which has good rigidity and high precision and 3.ensures the long-term high-precision operation of the equipment;
3.It has strong cutting ability and efficiency, and integrates advanced technologies such as laser cutting, precision machinery and numerical control technology.
4.Safer and more environmentally friendly.
Application
HGlaser fiber laser cutting machine for sale is an affordable, easy-to-use, and versatile tool that can help you begin a new start-up venture or increase the profits of your well-established company. This type of fiber laser cutter is suitable for cutting stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium ect., and has been widely used in advertising, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
Technical Specification

Machine Model	SMART3015T-3000
Cutting Area (L×W)	3048mm×1524mm
Laser Source	Raycus Fiber & 3000W
Transmission system	Gantry double- drive structure
CNC System	FSCUT 3000
Servo Motor	Fuji(JAPAN)
Laser Cutting Head	Raytools (F125mm)
Display	21.5" Industry LCD
Max Moving Speed	80m/min, Acceleration is 1.2G
Tube Processing Range	D20-D230mm
Tails Length	180mm
Position Accuracy (X and Y axis)	0.05mm
Reposition Accuracy (X and Y axis)	0.03mm
Lubrication system	Full-automatic
Power Supply Requirement	380V 50/60Hz
Max loading (KG)	2600 KG
Machine weight	≤5400 Kg
Appearance size	8210mm×3150mm×2060mm
Working environment	Temp:0- 40 ºC,humidity:≤80%,

Details
Machine bed
Beam
Laser source
Sample
Applicable to cutting carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
After-sale Service 1. Warranty period: From the acceptance qualified date, the warranty period will be 1 (one) year, but in any case, not more than 13 months after B/L date. Seller is responsible to offer free fittings in these years (except consumable part.) Buyer has to send the damaged fitting to sellers. After the warranty, we will also provide favorable service of long term technical supports and spares supply to ensure machine's stable and continuous running.
2. The artificial damage in the warranty period and damage after warranty period, Seller offers paid service.
3. The Seller will give 24 hours service support during warranty time, and giving technical guide by email, telephone, Fax for daily maintenance, if need local support, Buyer has to pay for the travel and
accommodation & meal cost for the people from seller's side, no labor charge require. If products are out of warranty and require on site service, Buyer have to pay for the travel and accommodation & meal cost for the people from seller's side, labor charge is require, USD200/day per people.
4. About the transportation expanses of spare parts will be supported by both parties in the warranty period, like Buyer support the cost of transportation for damage spare part back to supplier; Seller support the new spare part deliver to Buyer.
Service Process
Packaging and shipping
About Us
Company certification
Our Vision:
Participate in building a fully connected,
fully perceptual, and intelligent world,
and become a global influential tech-
nology company
Business Partners:
Exihibition FAQ:
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!
