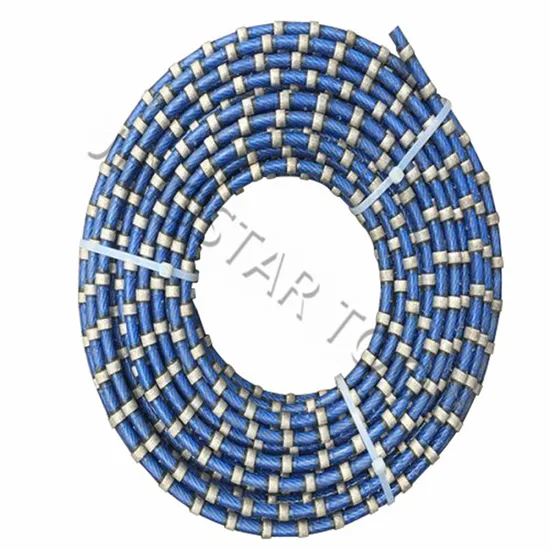

Diamond Wire Saw Cutting Ropes for Granite Marble Stone Quarry Cutting and Profiling

Product Description

Diamond Granite Marble Quarry Stone Cutting Multi Wire Saw For Sale PRODUCT FEATURES: 1: Good cutting result with small slot and high efficiency. 2: Good sharpness and long life,low noise and eco-friendly. Diameter
(mm) Connection Beads/meter Linear Speed(m/s) Application

8.5/8.8	Plastic+spring	37	20-30	Granite Sandstone
11	Plastic	40	20-30	Granite Sandstone
11.5	Plastic	40	20-30	Granite Sandstone
11.5	Plastic+spring	40	20-30	Granite Sandstone
8.5/8.8	Plastic	37	25-35	Marble
11	Spring	28	25-35	Marble

Other specifications are available upon request.
Granite Diamond Wire Performance:

Application	Assembly	Stone hardness	Feeding speed	Output	Lifespan
Granite quarry Dia11.5mm	Sinter+Rubber	Soft Granite	25-30m/s	4-6m2/h	15-25m2/m
		Medium hard	22-26m/s	2-5m2/h	8-15m2/m
		Hard Granite	18-23m/s	1-2.5m2/h	4-9m2/m
Granite Block dressing Dia11.0mm	Sinter+Plastic	Soft Granite	25-28m/s	60-100cm/h	15-25m2/m
		Medium hard	22-25m/s	40-60cm/h	10-17m2/m
		Hard Granite	20-23m/s	25-45cm/h	8-12m2/m
Granite profiling wire Dia8.8mm		Soft Granite	25-29m/s	6-10m3/h	17-22m3/m
	Plastic	Medium hard	22-25m/s	4-6m3/h	12-17m3/m
		Hard Granite	20-23m/s	2.5-4.5m3/h	10-14m3/m

Diamond Granite Quarry wire:
Diamond Granite Block dressing wire for Stationary wire saw machine

Diamond Granite Profiling wire for Stationary wire saw machine:

Diamond Marble Wire Performance:

Application	Assembly	Stone hardness	Feeding speed	Output	Lifespan
Marble quarry Dia11.0mm	Sinter+Rubber	Soft Marble	35-40m/s	10-20m2/h	40-70m2/m
		Medium hard	33-38m/s	8-16m2/h	25-45m2/m
		Hard Marble	30-35m/s	5-8m2/h	20-30m2/m
	Sinter+Rubber	Soft Marble	35-40m/s	10-20m2/h	35~55m3/m
		Medium hard	33-38m/s	8-16m2/h	15~35m3/m
		Hard Marble	30-35m/s	5-8m2/h	10~25m3/m
	Vacuum brazed +Spring	Soft Marble	52-60m/s	15-30m2/h	33-58m2/m
		Medium hard	50-57m/s	15-24m2/h	28-38m2/m
		Hard Marble	45-53m/s	8-12m2/h	17-25m2/m

Diamond Marble quarry Wire Dia11.0mm Sinter+Rubber

Diamond Marble quarry Wire Dia11.0mm Sinter+Spring


Marble block dressing Wire & profiling wire perofrmance:

Application	Assembly	Stone hardness	Feeding speed	Output	Lifespan
Marble Block dressing Dia11.0mm	Sinter+Plastic	Soft Marble	30-35m/s	90-130cm/h	40-60m2/m
		Medium hard	28-32m/s	70-100cm/h	25-40m2/m
		Hard Marble	26-30m/s	60-80cm/h	20-30m2/m
Marble profiling wire Dia8.8mm	Sinter+Plastic	Soft Marble	30-35m/s	100-150cm/h	35-45m3/m
		Medium hard	28-32m/s	80-120cm/h	30-40m3/m
		Hard Marble	26-30m/s	70-100cm/h	25-30m3/m

Sandstone Wire Performance:

Application	Assembly	Feeding speed	Output	Lifespan
Sandstone quarry wire D11.5	Sinter+Rubber	30-36m/s	4~10m2/h	10-20m3/m
Sandstone Block dressing wire D11.0	Sinter+Plastic	24-28m/s	60-100cm/h	15-25m3/m
Sandstone Profiling wire D8.8	Sinter+Plastic	24-28m/s	60-100cm/h	15-25m3/m
