CPR Training Manikin with LCD Screen (EM-006)

Product Description

CPR Training Manikin with LCD Screen
Model No.: EM-006
Implement standard: 2015 guideline for CPR

Package:	1 pcs/Carton
Package size:	97x33x58 cm
G.W.:	24 kg

Features:
1. The screen LCD display artificial respiration, external breast compression and pulse reaction
2. Simulate standard open airway and sound prompting
3. External breast compression: indicator light display, LCD counter display and sound prompting
a. Indicator light display of correct and wrong compression position; LCD counter display; sound prompting of wrong compression.
b. Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity;
digital strip indicator light (yellow, green, red) shows compression depth;
counter display;
sound prompting of wrong operation
4. Artificial respiration (Inhalation) indicator light display, LCD counter display and sound prompting:
a. Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b. Inhalation too quickly or too much result in air entering into stomach; indicator light display; digital counter display; sound prompting.
5. Ratio of compression and artificial respiration: 30:2 (one or two person)
6. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration
7. Operation frequency: at least 100 times per minute
8. Operation methods: exercise operation; examine operation
9. Operation time: counting down device
10. Sound prompting device: volume control; turning on or turning off sound prompting device
11. Print: print operation result
12. Examination of pupil response: mydriasis and myosis
13. Examination of carotid response: simulate spontaneous carotid pulse in compression process
14. Working conditions: Imput power is 110-240V

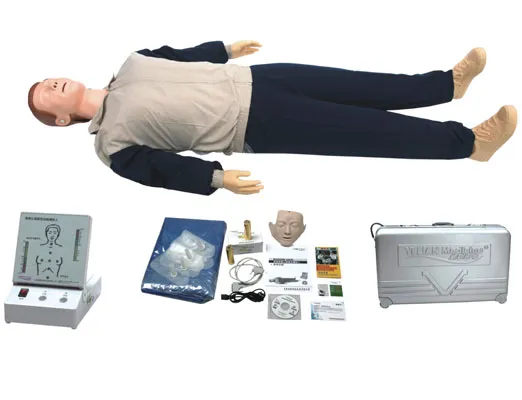

Standard components:
1. Full body manikin (1)
2. Big screen LCD (1)
3 .Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Artificial respiration face mask (1)
8. Exchangeable lung bag (5)
9. Temperature sensing print paper(2 roll )
10. Guide manual (1)
