Narrow European Smart Electronic Handle Lock for Hotel and Office

Product Description

E-Handle
Product Overview
E-Handle replace existing door furniture quickly and easily without the need to purchase new locking devices. This combined with the wire-free concept ensure a cost effective solution to access control. Evoxs E-Handles are produced a range of finishes and lever styles which complement modern working environments. Tested to EN standards for durability. The E-Handles offer a secure low maintenance solution to access control.
Features
Extensive range
E-Handle is available in various colour finishes, with a vast range of profile types and dimensions. The high quality range ensures maximum flexibility.
Easy installation
Quick and easy retrofit installation. No drilling or wire connections nedded ensuring installation is completed in minutes.
User friendly
Designed with an intuitive APP layout ensuring quick and easy configuration and maintenance.
Maintenance free
Upgradeable without being removed from the door and designed with a quick change battery compartment. This product is truly maintenance free.Fitted with a series of sensors, maintenance diagnostics is achieved without handle set removal.
High realiable
Simple modular design complete with independent clutched lever ensures maximum strength and durability.
Multi-unlocking method
The E-Handles can be opened through different ways
Technical parameter
Door thickness: 40mm- 120mm
Handle Spindle: 7mm, 7.6mm, 8mm, 8.5mm, 9mm
Battery:1xCR123 battery for outer clutch lock; 3 x AAA alkaline batteries for inner clutch lock
Battery life: 2 years standby, 1 year using if 10 operations per day
Undervoltage alarm: 80% of standard battery voltage sound and light prompts(also reported to the system through auxiliary equipment)
Signaling: Dual color green/red and buzzer
Card types: MIFARE, NFC
Card reading distance: < 2cm
Bluetooth type: Bluetooth 4.0 or higher mobile phones, password terminals, BLE Network encoder
Bluetooth comminication distance: <10m
Maximum number of users per door: 250 in LMS_Professional system, 2000 in EVOCloud system
Events: 500, memory is not deleted, even if power falls
RTC Time: Buffering typically 1 minute
Sensor: Use of multiple sensing technologies for maintenance and expansion
Working temperature: -20ºC - 60ºC (depending on the battery)
Operation humidity: 0 to 95% non-condensing

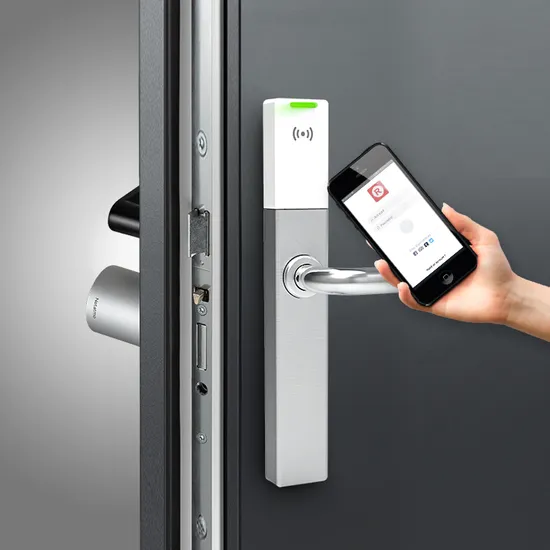

Narrow European smart Electronic Handle lock (EXLH-EP20)
Euro profile electronic handle lock is specially designed to fit most Euro profile interior doors, especially for narrow frames doors, which is smart, secure and simply for installation.
Clutch method: outer clutch
Distance between keyhole to handle: 70mm, 72mm, 85mm, 90mm, 92mm and also can be customized
Drawing
Solution
Hotel
Rayonics knows the hospitality industry and understands that it is more than just guest room management. This is why Rayonics designed a complete product range especially made for hospitality. Its development was centered on giving hotels the highest levels of comfort, ease and control, allowing them to provide an outstanding experience for their guests. System allow hotel client to control all access and management with one user friendly system. It suits countryside small hotel, chain hotel and other sizes.
These solution features make it easy to control all the offline and online guest rooms with the help of the lock solution. System also support back-of-house doors like the office rooms from one central location together. And system provide interface that can easily integrated into different PMS system.
Office
Increasing demands of efficient and effective workspace for saving management costs, many organizations are optimizing their workspace usability without assigning fixed workstation for everybody. With EVOXS intelligent E-lock system, the locks are easy to retrofit, all communication between locks and access point are wireless and By Bluetooth, every person in those offices can safely with existing access cards and Handset encoder(Mobile App) access control adds convenience and flexibility without sacrificing security.
Rayonics full range products
Rayonics provides full range products for clients to choose to fit their needs.
