Mini Electric Chain/ Wire Rope Hoist for Lifting Goods

Product Description

Mini Electric Chain/ Wire Rope Hoist for Lifting Goods
Details:
Capacity: From 200kg to 2000kg Wire Rope length: 6/12M or 10/20M(MAX.). Voltage:110-240V
Catalog:

Model	Method of Use	Rated volt(V)	Input power(W)	Rated lifting(kg)	Lifting Speed(m/min)	Lifting heght(m)	Qty/CTN (pcs)	Packing size	G.W./N.W.(kg)
PA200	Single-hook Double-hook	110/220	480	100 200	10 5	12 6	2	47*37*16	24/22
PA250	Single-hook Double-hook	110/220	510	125 250	10 5	12 6	2	47*37*16	24/22
PA300	Single-hook Double-hook	110/220	600	150 300	10 5	12 6	2	47*37*16	24/22
PA400	Single-hook Double-hook	110/220	950	200 400	10 5	12 6	2	52*42*17	36/34
PA500	Single-hook Double-hook	110/220	1020	250 500	10 5	12 6	2	52*42*17	36/34
PA600	Single-hook Double-hook	110/220	1200	300 600	10 5	12 6	2	52*42*17	36*34
PA700	Single-hook Double-hook	110/220	1250	350 700	8 4	12 6	2	52*42*17	38/36
PA800	Single-hook Double-hook	110/220	1300	400 800	8 4	12 6	2	52*42*17	38/36
PA1000	Single-hook Double-hook	110/220	1600	550 990	8 4	12 6	1	56*25*35	33/32

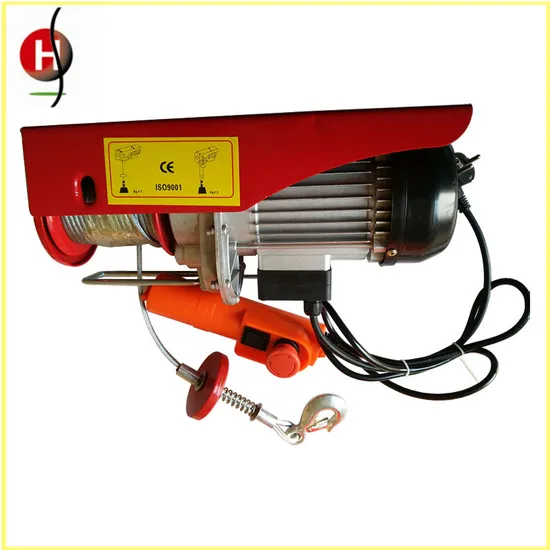

Picture:
Application: CE Certificate PA mini electric wire hoist is generally divided into stationary and running type, suitable for various occasions, can lift goods under 2000kg, especially suitable for lifting heavy items from downstairs of high-rise buildings.
This kind hoists has many features, such as simple structure, easy installation, small and exquisite, and use single power supply as its electricity. Mini electric hoists have reached the international standard in terms of production design and make sure of its security when using, using cast iron structure of motor cooling fin improves the service life.
Mini electric hoist lifting speed can reach up to 10 m/min, steel wire rope at the beginning of design can reach up to 12 meters long (lengthening can be customized), in terms of hook, specially designed as the advanced double Settings, greatly increased the mini electric hoist lifting weight, mini electric hoist can be used on 220V power supply, especially suitable for daily civilian, industrial production line, the freight logistics, etc. Feature:
With up and down postion limit safety device.
With emergency stop switch
Protection class up to IP54
With thermal prevention device
Reinforced breaking switch with position limit
Package:
Standard export strong carton
Strong wooden pallet.
