Machine for Making Nail and Screw/Nail Making Machine/Automatic Nail Machine

Product Description

High Speed Steel Wire Nail Making Machine, Nail Machine Maker,Nail Cutting Machine
Our factory has been specialized in producing all kinds of nails , screw, bolts and nuts making machines for more than 30 years. You can send us the sizes (diameter and length) and pictures of products that you want to make and then we will recommend you the sutiable machines.
1. Z94C series high speed Wire Nail Machine
New generation of automatic nail making machine
Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

Model No.	Nail diameter	Nail length	Motor	Speed	Overall dimension	weight
Z94-1C	0.9-1.6mm	9-25mm	1.5kw	450pcs/min	1.5*1.3*1.2m	0.8ton
Z94-2C	1.2-2.8mm	16-50mm	2.2kw	380pcs/min	1.7*1.3*1.4m	1.15ton
Z94-3C	1.6-3.5mm	25-75mm	3.0kw	320pcs/min	2.0*1.4*1.4m	1.35ton
Z94-4C	2.8-4.5mm	30-100mm	4.0kw	260pcs/min	2.2*1.6*1.65m	1.8ton
Z94-4C(2)	2.8-5.0mm	50-120mm	4.0kw	260pcs/min	2.32*1.55*1.3m	2.0ton
Z94-5.5C	3.5-5.5mm	75-150mm	5.5kw	220pcs/min	2.5*1.6*1.5m	2.2ton
Z94-5C(2)	3.0-6.5mm	80-220mm	5.5kw	130pcs/min	3.1*1.7*1.65m	2.7ton
Z94-6C	3.0-8.0mm	80-220mm	7.5kw	130pcs/min	3.1*1.7*1.65m	4.5ton
Z94-6C(2)	4.0-8.0mm	80-220mm	11kw	160pcs/min	3.22*1.82*1.5m	4.5ton
Z94-7C	5.0-10.0mm	150-320mm	11kw	160pcs/min	3.32*1.75*1.55m	4.6ton

Finished nails of Nail Machine Maker:


Auxiliary Equipment of Nail Machine Maker
1) Nail Polishing machine
Function: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
Main technical parameter:

Model	Motor power	Overall size	Capacity of nails
SD-400	2.2kw	1.64*0.9*1.0m	400kg
SD-600	3kw	2.0*1.0*1.4m	600kg
SD-800	7.5kw	2.0*1.2*1.5m	800kg
SD-1000	7.5kw	2.0*1.5*1.5m	1000kg
SD-2000	11kw	2.5*2.1*2.0m	2000kg
SD-3000	15kw	3.4*1.55*1.6m	3000kg

2) Wire drawing machine
Function: This is the combined wire drawing machine. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need. It is can be matched with 2 combinations, 3 combinations, 4 combinations or more according to the daily capacity.

Model No.	LS3-560 (3 drums)	Remarks, this machine comes with descaling device and discharging device.
Max. Inlet Wire Diameter	6.5mm
Min. Outlet Wire Diameter	2.0mm
Total motor power	15kw*3+2.2kw
Drawing speed	150m/min
TIPS : If you buy suitable diameter wire coil from the market directly, no need the wire drawing machine as well as the auxiliary equipment (pointing rolling machine and butt welding machine).

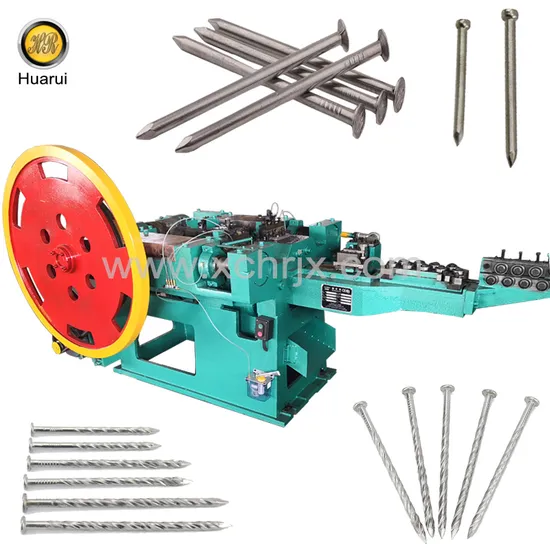

Pictures of Nail machine maker
Company introduction
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufactures CNC wire bending machine, wire straightening and cutting machine, wire cutter, wire bender, nail making machine, screw making machines, etc.

After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.

Our main products are wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.

We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.

We have our own designer and technician and engineers, can also customize the machines according to your needs.

FAQ
Q1. Why do we choose Huarui Machinery?
A1. We are very professional manufacturer of high quality screw making machines and we can provide a reasonable screw production line according to customers' demand.

Q2. Are you trading company or manufacturer?
A2. We are manufacturer with nearly 30 years experience. and 13 years exporting experiences.

Q3. Have you exported your machines to overseas market?
A3. Yes, we have exported our machines to Bangladesh, Ethiopian, Nigeria, South Africa, Morocco, Uganda, Kenya, Guinea,Uzbekistan, Indonesia, Russia, Egypt, India, Viet Nam, Thailand, Pakistan, Algeria and so on.....
Q4. Is there any quality warranty ?
A4. Yes, the warranty of mechanical portion of the equipment shall be 2 years.

Q5. How to choose the machines?
A5. Please tell us the nail size and type that you want to produce, we will recommend the most suitable machine models to you.

Q6. What is the raw material should we use?
A6. To make nails, usually use the common iron material , like Q195 ,Q235 ..

Q7. What's the delivery time?
A7. It is depending on your order quantity, usually we aim to deliver your order within 30 days.

Q8. How do you pack the machines?
A8. Wrapped film packing in full container. Wooden Frame or Wooden Case packing in LCL.

Q9. What's your payment terms?
A9. 40% TT deposit before production, 60% TT balance before shipment.

Q10. What is your MOQ ?
A10. 1 set of any machine model.
