High Output Plastic Pet Bottles Recycling Machine Pet Plastic Flakes Floating Washer Machine

Product Description

Product Description
High Output Plastic Pet Bottles Recycling Machine Pet plastic Flakes Floating Washer Machine
Machine detail

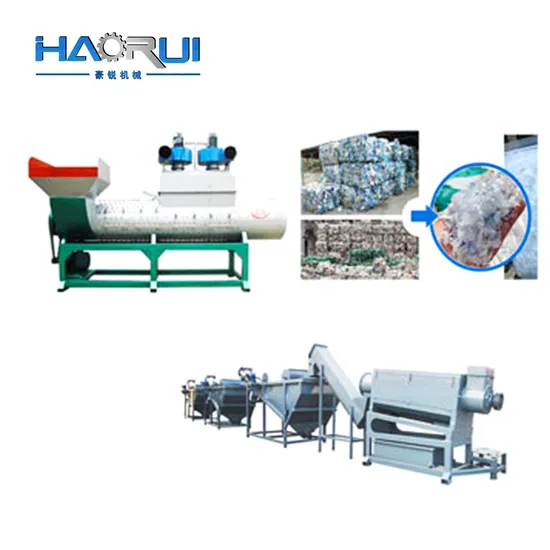

The Pet bottle recycling machine manufacturer by HAORUI machinery , is mainly used to recycling the waste PET bottles, water bottles, cola bottles.
1.Pet bottle recycling machine includes: conveyor belt, label remover, sorting system,wet crusher, sinking-floating washing tank, hot washing tank, frication washing machine, dewatering machine, label separator and packing system.
2.This machines can easily remove the labels, caps, rings, glue, dirties and other impurities, finally customer get ideal PET flakes.
3.Material can be carbon steel or stainless steel 304 according to customer budget4.Make layout into "I","U" ,"L" according to customer workshop.
Our Advantage:
1. Always keep"quality is first" makes us famous brand in China and Africa.
2.Keep improving our technology, have 13 patents certifications already
3.Machines have excellent performance with customers, 98% customers gave us good feedback
4. High Input→Output Ratio , let customer do more profitable business
5.100% end manufacturer, short delivery time, big capacity 3-6tons/h line be finished in 40-50days
Main technical datas

Machine name	High Output Plastic Pet Bottles Recycling Machine Pet plastic Flakes Floating Washer Machine
capacity	2000kg/h
solution	PET flakes for new bottle ,fiber, strap
Flakes size	8mm,10mm,12mm,14mm,16mmetc.
Material	Carbon steel or 304SS
Machine size	80m(L)*8M(W)*6M(H)
Energy consumption	400kw
Moisture	1%
Water consumption	20-30 m3/hr
Workers	15-20workers

Detailed Photos

SN:	Item name:	Function
1	Bale Opener machine	Open the PET bale
2	Conveyor belt	Feeding material
3	Trommel screen	Remove the sand, rocks and other dirty from the bottles
4	Conveyor	Feeding material
5	Manual sorting table	Sorting out different plastic
6	Label Remover	Remove labels from Bottles
7	Conveyor belt	Feeding material
8	Crusher	Crushing the bottles into flakes
9	Screw loader	Conveying material
10	1st Auto floating washing tank	Washing out the Floating caps, rings and dirty
11	Screw loader	Conveying material
12	2nd Auto floating washing tank	Washing out the Floating caps, rings and dirty
13	Screw loader	Conveying material
14	Hot washing tank	With Hot water washing and chemical to remove glue, oil, and dirty
15	Screw Loader	Conveying material
16	High Speed Friction washer	With high speed Friction Washing out dirty and Chemical water from flakes
17	3rd Auto floating washing tank	Washing out floating caps, rings and dirty,
18	Screw loader	Conveying material
19	4th Auto floating washing tank	Washing out the Floating caps, rings and dirty
20	Screw Loader	Conveying material
21	Horizontal Dewatering Machine	Drying the flakes
22	Hot Air Drying system	Drying the flakes again
23	Zig-Zag label separator	Remove the dust and small remain labels
24	Automatic packing system	Collecting the flakes
25	Electric control panel	Used to control the whole Line
26	Free spare parts
PET bottle washing/recycling line/machine can be customized according to customer requests.

Final Flakes
Company Profile
Customer visit
