Single Shaft Paddle Mixer Grain Mixer Coffee Bean Mixer

Product Description

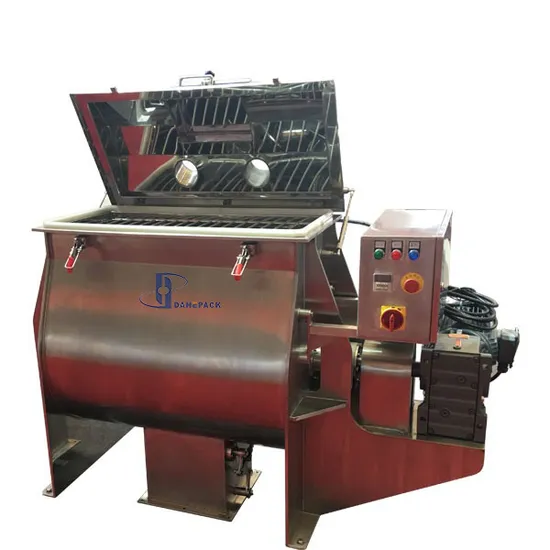

single shaft paddle mixer grain mixer coffee bean mixer
Descriptive abstract
single shaft paddle mixer grain mixer coffee bean mixer is suitable use for powder and powder,granule and granule or add a little liquid to mixing.it is widely applied in nuts,beans,feed or other kinds of granule material, Inside of the machine have different angle of blade thrown up the material thus cross mixing.
Main features
1,High active :Rotate reversely and throw materials to different angles,mixing time 1-3min
2,High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%
3,Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole
4,Zero leakage: Patent design and ensure the rotating axle & discharing hole w/o leakage
5,Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.
6,Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.

Main Technical Date

Model	TDS-200	TDS-300	TDS-500	TDS-1000	TDS-1500	TDS-2000
Effective Volume	200L	300L	500L	1000L	1500L	2000L
Fully Volume	280L	400L	680L	1280L	1820L	2450L
Loading factor	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Turning Speed	53rpm	53rpm	45rpm	45rpm	39rpm	39rpm
Total Weight	450kg	680kg	980kg	1350kg	1650kg	2300kg
Total Power	4kw	5.5kw	7.5kw	11kw	15kw	17.5kw
Length(L)	1630	1850	2030	2550	2900	3200
Width(W)	850	950	1000	1230	1330	1460
Height(H)	1100	1180	1330	1570	1760	1880
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz
