Four Wheel Drive Truck Concrete Mixer for Dubai
| US$12,600.00-13,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1.2cbm
Type
Concrete Mixing Truck
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
10cbm/H
Feeding Height
2500mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White and Green
Actual Mixing Capacity
1.2cbm
Rotary Drum Capacity
1.4cbm
Slump of Concrete
70-260mm
Tank Capacity
540L
Reducer Ratio
01:10
Rated Power
58kw
Max Torque
255/1500-1800 380/1500-1800 N.M/R/Min
Max Running Speed
24km/H
Min Steering Radius
5000mm
Climbing Capacity
26
Tire
23.5/70-16
Driving Way
4×4
Weight
4580kg
Maximum Load Capacity
2800kg
Whole Machinery Weight
7380kg
Transport Package
Nude Package
Specification
6100*1850*3000mm
Trademark
HW
Origin
China
HS Code
8705400000
Production Capacity
300sets/Month
Product Description
HWJB120 Self Loading Concrete Mixer Truck Production CharacteristicItaly Leading Design, Automatic Feeding Mixing System
Simple And Convenient Operation
High-Efficiency Output, Save Time And Labor Save Cost
The Perfect Combination Of Mixing Truck And Loading Car
Technical Parameter
| Specifications | Unit | Parameter |
| Model | / | HWJB120 |
| Actual mixing capacity | m³ | 1.2 |
| Rotary drum capacity | m³ | 1.4 |
| Degree of bias | ° | 16 |
| Rotational speed | r/min | 0-14 |
| Direction of rotation | | Feed:clockwise output:counter clockwise |
| Mixing drum blade | | Two sets of spiral blades and four sets of auxiliary blades |
| Slump of concrete | mm | 70-260 |
| Hydraulic Power Transmission System | ||
| Pump model | | CBGV-4025 |
| Hydraulic motor model | | BMSS-250 |
| Reducer ratio | | 01:10 |
| Water Supply | ||
| Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the engine | ||
| Engine type / displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| model | | Straight injection type four-stroke water-cooled supercharged diesel engine |
| Rated power | kw/r/min | 58KW/2400 |
| Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| Max running speed | km/h | 24 |
| Min steering radius | mm | 5000 |
| Climbing capacity | % | 26 |
| Tire | | 23.5/70-16 |
| Driving way | | 4×4 |
| Weight | kg | 4580 |
| Maximum load capacity | kg | 2800 |
| Whole machinery weight | kg | 7380 |
| Overall size(L*W*H) | mm | 6100*1850*3000 |

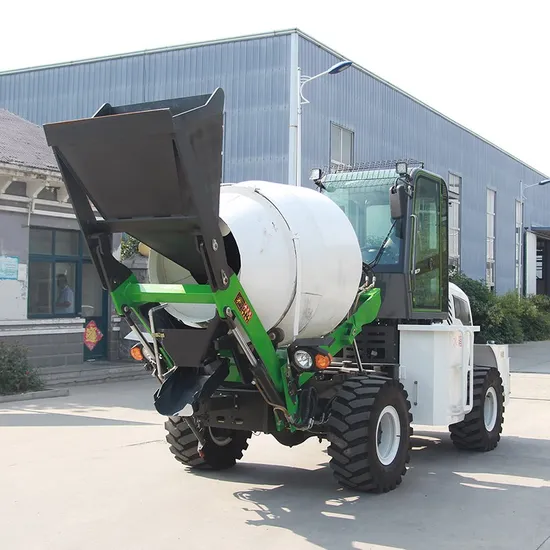

Self Loading concrete mixer truck 1.2cbm
Product Details
Automatic feeding concrete mixer truck Product detailsConstruction SiteCompany Profile
