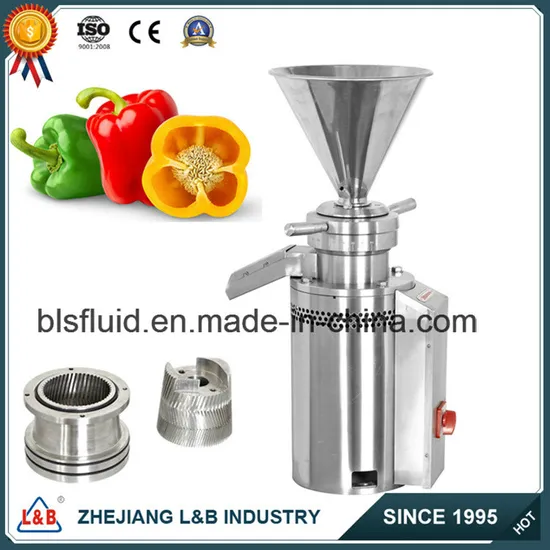

Stainless Steel Homogenizer Pepper Sauce Making Machine Colloid Mill

Product Description

stainless steel homogenizer pepper sauce making machine colloid mill

Reference parameters of Stainless steel homogenizer pepper Sauce making machine Colloid Mill
Product name:	Stainless steel homogenizer pepper Sauce making machine Colloid Mill
Package:	plywood case
Brand name:	L&B
Payment terms:	T/T
MOQ:	one set
Machine material:	strengthen treatment stainless steel 304 or 316 ( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)
Delivery time:	with 7 working days after received payment
Warranty:	12 months(during the machine life, we will supply parts and fittings you need)
Movable and static millstone space	01mm
Seal	oil seal
Switch	≤ 7.5kw
Water-cooling system	long time work must be equipped
Agitator	V-shape head or spiral head
Model	JML50---JML140
Speed	2800rpm
Working principle	shearing, grinding as well as high-speed stirring
Type	wet type super micro grain processing
Outlet	circulation pipe or square outlet
Main structure	grinding head, pedestal driving part and special motor
Advantages	fine anti-corrosion and anti-abrasion ability, without pollution

Product Application
JML series colloidal mill grinding machine is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions.
It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze,nanometer material, etc.
Patent
The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.
Principle
The basic working principle of colloidal mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.
Main technical parameters:

Model	Emulsified size (um)	Output T/h	Millstone Dim (mm)	Cooling water pipe(mm)	Outlet Dim (mm)	Inlet Dim (mm)	Speed (rpm)	Power (kw)
JML-50	2-40	0.01-0.1	50	10	20	30	2800	1.5(220V)
JML-50	2-40	0.01-0.1	50	10	20	30	2800	1.1(380V)
JML-65	2-40	0.02-0.5	65	10	20	30	2800	1.5
JML-80	2-40	0.3-1	80	12	25	48	2800	3
JML-100	2-40	0.5-2	100	12	25	66	2800	5.5
JML-120	2-40	0.5-3	120	12	32	66	2800	7.5
JML-140	2-40	0.5-4	140	12	32	66	2800	7.5
