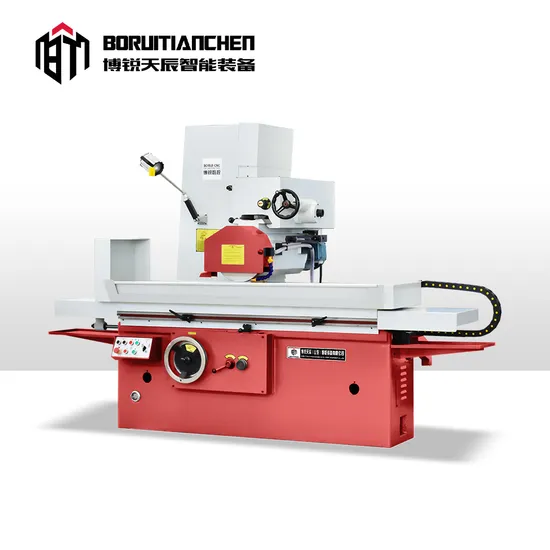

M7132 Premium Manual Surface Grinding Machine for Sale Single Grinding Machine

Product Description

M7132 High Quality Manual Surface Grinding Machine Surface Grinding Machine For Sale
Product Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:

Model		M7132-1000	M7132-1600	M7132-2000
Table size (length×width)	mm	1000×320	1600×320	2000×320
Max. longitudinal stroke of worktable	mm	1100	1700	2100
T-slot of worktable number of slots×width of slot		3×18	3×18	3×18
Table speed (infinite)	m/min	3--25	3--25	3--25
Max. distance from the center of the grinding wheel shaft to the worktable	mm	570	570	570
Max. stroke of grinding head Horizontal (manual and hydraulic)	mm	350	350	350
Max. stroke of grinding head Vertical (manual)	mm	400	400	400
Rotating Speed of Grinding Wheel Shaft	rpm	1440	1440	1440
Grinding wheel size (outer diameter×width×inner diameter)	mm	350×40×127
Vertical feed handwheel dial value	mm	0.01	0.01	0.01
Grinding head feed per turn of handwheel	mm	1.00	1.00	1.00
Total motor power	kw	11	12	12
power	kw	7.5	7.5	7.5
Rotating speed	r/min	1440	1440	1440
power	kw	0.37	0.37	0.37
Rotating speed	r/min	1440	1440	1440
Oil pump motor	kw	3	4	4
Rotating speed	r/min	960	960	960
Cooling pump motor	kw	0.125	0.125	0.125
Rotating speed	r/min	2800	2800	2800
flow	L/min	100	125	125
Work pressure	MPa	1.5	1.5	1.5
Parallelism of the machined surface to the base surface	mm	1000:0.015	1000:0.015	1000:0.015
Surface roughness	μm	Ra0.63	Ra0.63	Ra0.63
net weight/Gross weight	kg	3700/4300	4300/4900	4830/5300
Overall dimensions (length×width×height)	mm	2700×1700×2100	4400×1700×2100	5400×1700×2300

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
