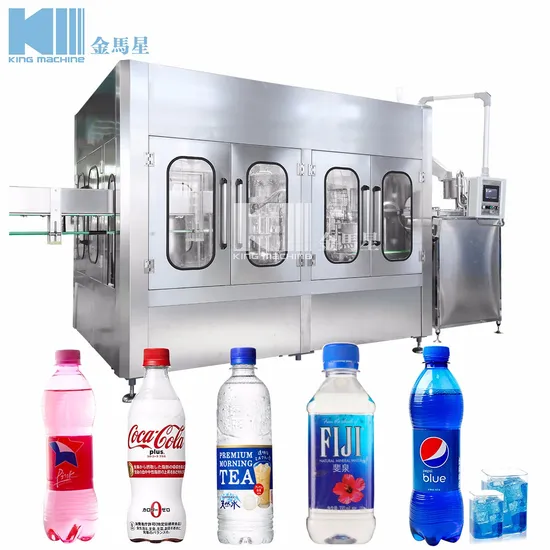

Automatic Plastic Container Carbonated Beverage Bottling Machine

Product Description

Automatic CO2 Drink Filling Machine
Brief description:
1. Production capacity: 2000-20000bph for 500ml
2. Filling range: 0.35-2.0L

The Automatic CO2 Drink Filling Machine Is Mainly Used in The Beverage Filling Operations. The Three Functions of Bottle Wash, Fill and Seal Are Composed in One Body of The Machine. The Whole Process Is Automatic.
The Automatic CO2 Drink Filling Machineof Isotonic filling Methods (D Type) Is Used in Filling Juices, Mineral Water and Purified Water in Bottles Made of Polyester and Plastics. The Handle of The Machine Can Be Freely and Conveniently Turned to Adjust The Machine to Fill Various Types of Bottles. The Filling Operation Is Faster and More Stable Because The New Isotonic Pressure Filling Operation of The New Type Is Adopted.
There The Output and Benefit of The Machine Is Higher Than The Machinery of The Same Specifications. The Advanced Omron Programmed Controller (PLC) Is Adopted to Control The Machine to Run Automatically While a Transducer Is Used in The Bottle-Entering Chains to Adjust Speeds and Coordinated with The Transducer of The Main Machine to Make The Operations of Moving Bottle Forward Steadily and Reliably.
It Is Convenient to Operate with Higher Automation Because Every Part of The Machine Is Inspected to Run with Photo Electricity. The Machine Is an Idea-Preferred Equipment for Beverage Makers.

Containers and specifications
Project Name: Full Automatic Complete Carbonated Drink 2000-36000bph Production Line				Carbonated Drink
Material	Shape	Filling volume	Filling level(mm)	Neck type
PET Bottle	Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	Middle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Carbonated Drink Preparation	Syrup melting machine, Mixing Machine, CO2 filter, CO2 mixer ....
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	1*2 2*3 3*4 4*6 3*5
User Ambient Conditions		Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%
