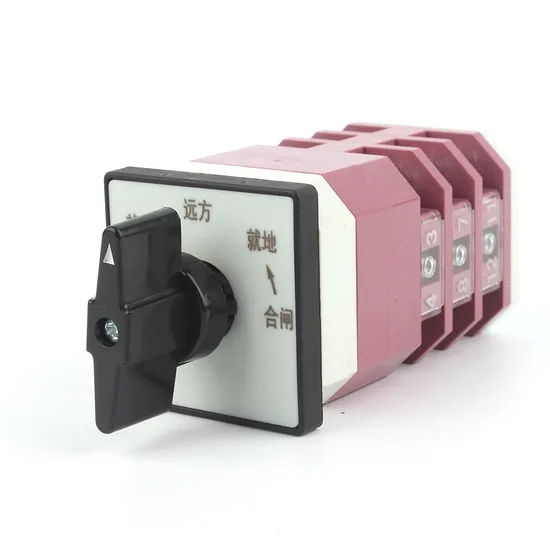

Lw12D-16 off-on Function Changeover Rotary Switch Be Used for Rotary Shaft Potentiometer

Product Description

LW12D 10A 20A 25A 32A 63A 125A OFF-ON/ON-OFF-ON rotary switch cam switch changeover switch
Product Description

Rated insulation current	Ui	V			500
Rated thermal current	ITH	A		16
Rated working voltage	Ue	V	220		380
Rted working current	Le
AC-15		A	4.6		2.6
DC-13		A	0.27
DC-3		A			12
DC-4		A			12

The Rotary switch positioning adopts roller card radial structure, the panel is printed with ink, which has a certain waterproof effect. At the same time, the thickened pure copper conductor and silver alloy contacts are used to extend the service life of the product. It has the advantages of multi-contact, multi-position, small volume, reliable performance, easy operation, flexible installation. The product is mainly used for the power input switch in the electrical control line of machine tools

The rotary switch, an integral component in the intricate world of electrical control systems, embodies a harmonious blend of precision engineering and user-centric design. Its positioning mechanism, ingeniously crafted with a roller card radial structure, ensures smooth and accurate switching operations. This design not only enhances the durability of the switch but also promotes ease of use, allowing for seamless transitions between settings without the hassle of misalignments or mechanical jamming commonly encountered in less sophisticated alternatives.
The outer panel, meticulously printed using high-quality ink, serves dual purposes. Firstly, it imparts a clear, legible interface for users, indicating the various positions and functionalities of the switch. This is particularly crucial in environments where quick and correct identification is of the essence, such as in industrial control panels. Secondly, the ink application process incorporates a level of waterproofing, thereby safeguarding the switch against accidental spills or humidity, ensuring continued functionality even in less than ideal conditions. This feature is especially valuable in applications where the equipment may be exposed to variable environmental factors, enhancing the overall resilience of the system.
At the heart of the switch lies its electrical conductivity system, which boasts thickened pure copper conductors and silver alloy contacts. Copper, renowned for its excellent conductivity and thermal properties, forms the backbone of the switch's electrical pathway. By thickening these conductors, resistance is minimized, allowing for efficient power transmission. Complementing this is the use of silver alloy contacts, known for their resistance to oxidation and high wear resistance, which significantly extends the lifespan of the switch. This combination ensures reliable connectivity over countless cycles, reducing the need for maintenance and replacement, thus translating into cost savings and increased uptime for the machinery it serves.
One of the key highlights of the rotary switch is its capacity for multi-contact and multi-position configurations. This versatility enables it to cater to complex control requirements, where different operational modes or power levels are necessary. From basic on-off functions to intricate step-by-step control sequences, the switch adapts effortlessly, making it a versatile solution across a broad spectrum of industrial and commercial applications.
Despite its advanced capabilities, the switch maintains a compact form factor. This small volume, combined with its flexible installation options, facilitates integration into confined spaces within electrical cabinets or control panels. It is a testament to the manufacturer's commitment to optimizing spatial efficiency without compromising on performance.
