E-Beam Welding Manganin Electrical Shunt for Smart Energy Meter

Product Description

Product Description
GRT505 Shunt Resistors
Manganin, E-beam welding;
High precision, high strength, reliable and stable;
Whole part for resistance measurement, low heat dissipation, low temperature;
Low resistance value
Curve
Preformance

Resistance value (μΩ)	Tolerance	TRC	Power	Thickness (mm)	Width of manganese copper
≤100	±1% ±5% ±10%	≤±50PPM	3W	2.0	5---10mm
120				1.5
150				1.5
200				1.2
250				1.2
300				1.0
350				1.0
≥500				1.0

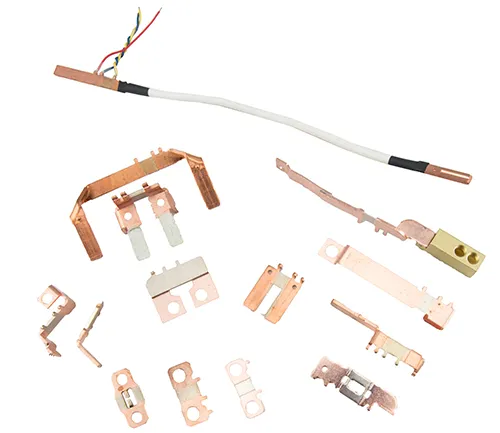

Typical Terminal Type
Our Advantages
1. National high-tech enterprise.
2. Established provincial R&D center for latching relay.
3. Main products have passed CQC, VDT, TUV, UL and RoHS etc.
4. Focusing on the R&D of latchiing relay and current transformer for nearly 20 years.
5. One of the drafters of industrial staradard of "latching relay used in electrical energy meters"Trade Show & Honor
Certificate
FAQ
Q: What are the application fields of your products?
A: Our products are mainly used in smart meter, smart home, load control, synchronous switch, leakage protection and other applications.
Q: Are you a manufacturer or a trade company?
A: We are the manufacturer, but we have our own international trade department. We have ability to sell our products to the buyers all over the world.
Q:Can you provide custom products?
A: Absolutely OK. Due to most of our products need to be customized. You can send us your drawing or requirements, our technical staff will assist you to develop the products.
Q: Which countries do you export to?
A: At present, our products are mainly exported to Denmark, Japan, Spain, South Korea, Ukraine, Russia and other countries.
Q: Do you have requirements for MOQ?
A: There is no limiteation for MOQ except the special condition of your products. Our saleman will inform you in advance if there is MOQ exisiting.
Q: What kind of payment you can accept?
A:We accept TT , L/C, Western Union as payment methods.
Q: What kind of price term you can accept?
A: We accept FOB, CNF, CIF, FCA, DDP, EXW etc.
Q: Can you offer samples? Do we need to pay the sample fee?
A: As long as there is no specical requirements for the samples, we can offer at most 5~10pcs ( depends on specific model) free samples for testing. But you need to burden the shipping cost.
