China Automatic LCD Displayed Digital Polarimeter Digipol-P630 Microcomputer Control Digital Automatic Polarimeter

Product Description

Product Overview

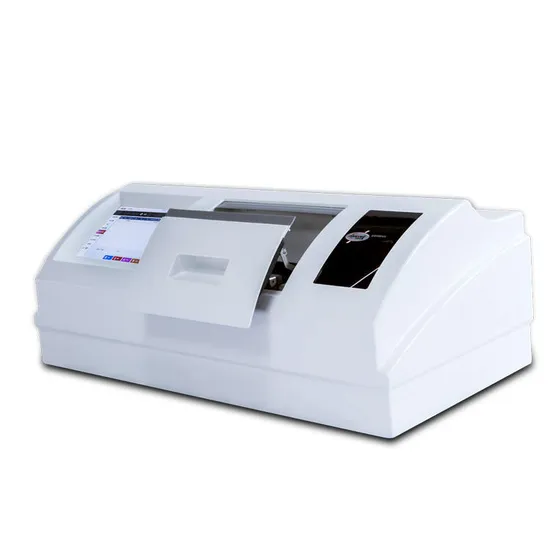

Digipol-P630 Automatic Polarimeter
Digipol-P630 Automatic Polarimeter is an instrument for measuring the rotation of substances. The concentration, content and purity of the substance can be determined by spectrophotometry. Shanghai Jiahang Automatic Polarimeter has built-in Peltier precise temperature control system, which can meet users' requirements for testing at constant temperature. The built-in automatic calibration program is optional, and the standard automatic calibration tool can be automatically calibrated from -45 degrees to +45 degrees, which fully meets the user's demand for controllable measurement accuracy in daily operation. The multi-level authority management of Shanghai Jiahang automatic polarometer can meet the audit tracking. Product advantages 1: Built-in Parpaste temperature control, improve accuracy and stability;
2: there are rotation/specific curl/concentration/sugar degree and custom mode;
3: LED cold light source instead of the traditional sodium light lamp and halogen tungsten lamp;
4: Compliance with 21CFR Part 1 audit trail, pharmacopoeia and electronic signature;
5: Support network printing, support data statistical retrieval;
6: Multi-level authority management, authority can be freely configured;
7:10 inch touch color screen, user-friendly operation interface;
8: The system comes with automatic calibration system.
9: Comply with GLP GMP certification
PRODUCT SPECIFICATIONS

Model	DigiPol-P630
Measurement mode	Rotation, specific curl, concentration, sugar content and custom formula
light source	LED cold light source + high precision interference filter
Working wavelength	589.3nm
Test function	Single, multiple and continuous measurement
Measuring range	Optical rotation ± 90 ° Sugar ± 259 ° for Z
Minimum reading	0.001°(0.0001°Optional)
Accuracy	± 0.002 °
Repeatability	(Standard deviation s) 0.002° (Optical rotation)
Temperature control range	10-60(Peltier )
Temperature resolution	0.01
Temperature control accuracy	±0.03
Display method	8-inch TFT true color touch screen
Standard test tube	200mm,100mm ordinary type,100mm temperature control type (optional Hastelloy alloy temperature control tube of various lengths)
Transmittance	0.01%
data storage	64G
Automatic calibration	YES(standard with a standard pipe)
Audit trail	YES
Electronic signature	YES
Multi-function search	YES
Print	General-purpose printer, WiFi printing (Standard with a printer)
Method library	YES
cloud service	YES
MD5 code verification	YES
Custom formula	YES
User Management	YES / Four-level authority management
Export in multiple file formats	PDF & Excel
Communication Interface	USB, RS232, VGA, Ethernet
Instrument level	0.01 level
Other options	Each capacity 50mm and 200mm long temperature control tube, mouse, keyboard connection, general purpose printer/wireless network printer
Power supply	220V ±22V, 50Hz ± 1Hz, 250W
Weight	28kg
size	715x355x280mm(L*H*W)
Packing size	820x475x465mm(L*H*W)

Fields of use 1. Automatic polarimeter is widely used in medicine, food, organic chemical industry and other fields. 2. Agriculture: analysis of ingredients such as agricultural antibiotics, agricultural hormones, microbial pesticides and starch content of agricultural products. 3. Medicine: analysis of antibiotics, vitamins, glucose and other drugs, pharmacological study of Chinese herbal medicine. 4. Food: sugar, monosodium glutamate, soy sauce and other production process control and finished product inspection, food sugar content determination. 5. Petroleum: analysis of mineral oil, monitoring of petroleum fermentation process. 6. Fragrance: analysis of essential oils. 7. Health services: analysis of clinical diabetes in hospitals ABOUT US FAQ
