vedio technical support distillers short path distillation for laboratory scale purifications

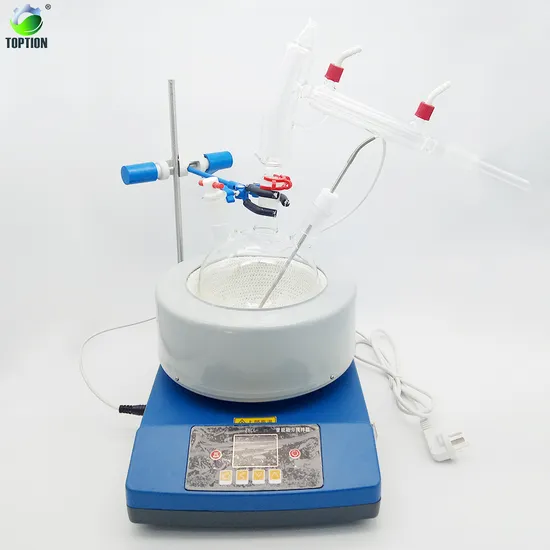

Lab scale short path molecular distillation equipment for sale TOPTION new separation technology, especially suitable for the separation of the high boiling point and heat-sensitive & easy oxidation materials,etc.

Product Parameters

Model		SPD-2L	SPD-5L	SPD-10L	SPD-20L
Material		Borosilicate Glass 3.3
Heating Temperature		Ambient to 300ºC
Working Pressure		Around 5 Pa
Distillation Vessel	Volume (L)	2	5	10	20
	Interface Specification	2 x 24/40 joint	34/45 joint, 24/40 joint	24/40 join, 2 x 34/45 joint	24/40 joint, 2 x 34/45 joint
Receiving Vessel	Volume (mL)	2 x 500mL	2 x 1000mL	2 x 2000mL	4 x 2000mL
	Interfac	24/40 joint	24/40 joint	24/40 joint	24/40 joint
Cold Trap	Dry Ice Volume (L)	1L	1L	1L	2 pcsx 1L
Heating Mantle	Heating Power (w)	650	1100	2100	3000
	Roating Speed (rpm)	50-1800	50-1800	50-1800	50-1800
	Motor Power (w)	40	40	40	40
Vacuum Pump	Pumping Rate (CFM)	10	10	10	15
Cooling Circularor	Cooling Temperature	-5ºC ~ 85ºC	-5ºC ~ 85ºC	-5ºC ~ 85ºC	-5ºC ~ 85ºC
General	Voltage	110V 60Hz or 220V 50/60Hz, 1-Phase

Our Advantages


Certifications
Packaging & Shipping
Company Profile
FAQ
1.Q:Are you trading company or manufacturer?
We are professional manufacture of lab equipment and we have our own factory. And welcome to visit our factory.
2.Q:What's the processing capacity do you have?
We can offer you 1~3L/H, 5~12L/H, 10~25L/H, 18-30L/H, 20~60L/H.
3.Q: Can you do OEM service ?
A: We can provide the specific products needed around the world at significantly lower costs.
TOPTION also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
4.Q: How long is your delivery time?
A: Usually, delivery time is 30-45 days after receiving your payment.
5.Q: How about your quality warranty ?
A: Normally all TOPTION products are supplied with a warranty of 12 Months from the date of shipment.
6. Q:Can we visit your factory?
A: Welcome visit our factory.
7. Q:If we want to customize molecular distillation , is it available?
Sure,we are experienced at this,we have professional technical team, we can design the drawing according to your requirements and then produce it.
