Fanuc Siemens Control Drilling Machine ZK5140 ZK5150 Vertical CNC Drilling
| US$1,200.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZK5140 ZK5150
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
50mm
Spindle travel
850mm
Spindle taper
MT4
Speed
1400pm
Motor
3KW
Transport Package
Plywood Case
Specification
2700kgs
Trademark
HOTONMC
Origin
Shandong, China
HS Code
8459290000
Production Capacity
20 PCS/Month
Product Description

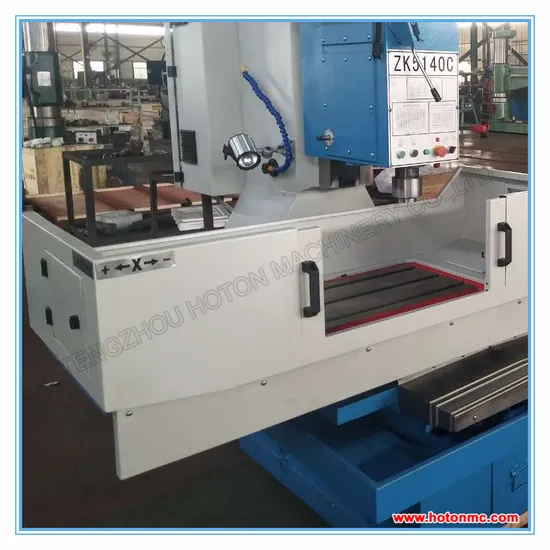

CNC Vertical Drilling Machine ZK51 series Machine Features:
ZK51 series CNC vertical drilling machine is a general-purpose machine tool. In addition to drilling, this machine can also perform reaming, countersinking, reaming, tapping, etc. Its function will greatly reduce the processing programming time. The processing programs of various workpieces can be stored in the control system in advance, and can be called up at any time during processing. The operation is simple and easy to grasp.
In the non-cutting state, the spindle idle stroke feed rate has reached 2500mm / min, which shortens the dry run time and improves production efficiency.
The machine has a beautiful appearance, reasonable structure, simple and compact structure, high rigidity, superior performance, and convenient maintenance and repair.
This equipment is equipped with KND-1000M-C numerical control system and ST series servo motor: 130ST-M06025 as standard.
| Standard Accessories: |
| Linear guide and square guide slider |
| Ball screw |
| CNC system(K1000MC) |
| Absolute value servo motor and driver |
| Mechanical spindle |
| Other main electrical components |
| Remote control box |
| Positive displacement automatic lubrication system |
Product main technical Specifications:
| Specification | ZK5150 | ZK5140 |
| Table size | 1000*545 | 1000*545 |
| area of worktable | 850*400 | 850*400 |
| max drilling dia | φ50 | φ40 |
| T-slot width*quantity | 18*3 | 18*3 |
| Spindle hole taper | Morse5# | Morse4# |
| Spindle speeds | 31.5-1400/12 | 31.5-1400/12 |
| Power of spindle motor | 3 | 3 |
| Spindle box travel | 360 | 360 |
| Travel (X Y Z) | 850*400*240 | 850*400*240 |
| Distance from spindle nose to worktable | 65-665 | 100-700 |
| Distance from spindle center line to column | 335mm | 335mm |
| Rapid travel rate X/Y/Z | 15/15/1.1 | 15/15/1.1 |
| CNC system | KND or GSK | KND |
| Max torque of spindle | 350 | 350 |
| Max feed resistance | 12000 | 10000 |
| Positioning accuracy | ±0.025 | ±0.025 |
| Repeatabiluy accuracy | ±0.015 | ±0.015 |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty mod els by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
