Product Description

Product Description

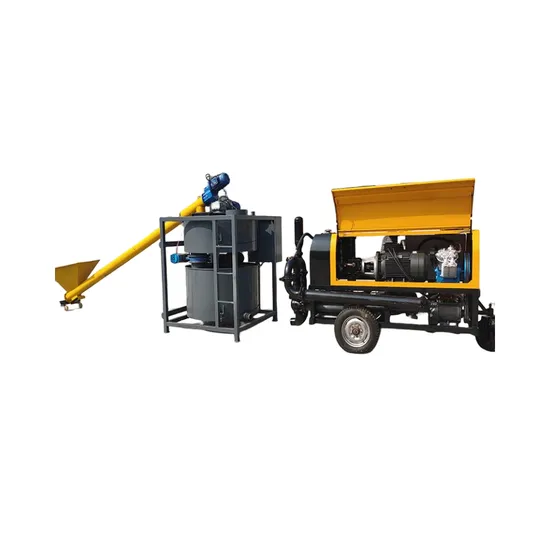

The FM series cement foaming machine adopts digital control technology, which can continuously and accurately adjust the density of foam cement,
and can meet the production of various density foam cement products.
The small home decoration cement foaming machine model is FM05B/FM10B, also known as a micro cement foaming machine.
It has a simple structure and can be used indoors. It is mainly designed for small-scale construction such as rural renovation, urban residential construction, urban housing construction, building renovation, new houses, self built houses, or internal and external wall construction, roof concrete column filling, etc.
It is suitable for various cement products such as lightweight foam bricks, lightweight insulation boards, cement foam boards, etc Cement foam bricks, exterior wall
insulation materials, lightweight insulation blocks, small cement injection molds, masonry casting parts, refractory materials, and prefabricated processing of fire door cores.
Performance characteristics

1. Computer control: PLC computer control unit, electrical box equipped with remote control handle, all functions can be remotely operated wirelessly
2. Digital adjustment: digital control is adopted for foam dosage, and the density adjustment is fine and accurate
3. Delicate foam: the finished product has high quality, smooth surface, and fine and stable foam
4. Natural leveling: The construction surface can be naturally leveled without the need for secondary construction
5. Automatic dilution: The foaming solution is automatically mixed and diluted according to the set water ratio in the machine, reducing labor intensity and human error
6. Hydraulic pumping: Adopting a double cylinder fully hydraulic pushing mechanism, the outlet pressure is high, and the horizontal conveying can reach 500-1600 meters,
and the vertical conveying can reach 80-200 meters, which can meet the needs of high-rise buildings
7. Cooling method: The hydraulic system adopts an advanced air cooling system to replace the water cooling system, avoiding the trouble of connecting to the drainage pipe
8. Portable mobility: Vehicle mounted working mode with walking wheels, which can be moved on the ground or used on the vehicle
Specification:

Model		FM05B	FM10B	FM20B	FM30D	FM05B	FM10B	FM20B	FM30D
Productivity		3~5m3/h	8~10m3/h	16~12m3/h	25~30m3/h	3~5m3/h	8~10m3/h	16~12m3/h	25~30m3/h
Horizontal distance		300m	300m	500m	500m	800m	1200m	1200m	1600m
Vertical distance		40m	80m	80m	120m	160m	160m	200m	200m
Motor power		4.5kw	7.7kw	21kw	28kw	31kw	31kw	42kw	42kw
Mixing trough volume		200L	350L	580L	580L	580L	580L	735L	735L
Mixer hopper height		880mm	1000mm	1100mm	1100mm	1100mm	1100mm	1100mm	1100mm
Weight		910kg	1000kg	1400kg	1420kg	1480kg	1480kg	1630kg	1630kg

Applicable scope:
1. Roof insulation, including insulation layer and sloping layer;
2. Floor heating or sound insulation cushion layer:
3. Foundation pit filling and lightweight concrete filling for basements, bridges, tunnels, and other structures:
4. External insulation of foam concrete external wall and internal insulation of external wall;
5. Industrial pipeline insulation, refractory furnace and kiln cast-in-place insulation:
6. All kinds of cast-in-situ foam concrete walls, cast-in-situ light steel villas walls or projects:
7. Production of retaining walls, foam concrete blocks, lightweight wallboards, fire door cores, and fire barriers.

Block mould:
Foam agent:
Specifications of HF30 Foam Agent:
Certificate:
Cases:
The foam concrete making station:
Shipment:
