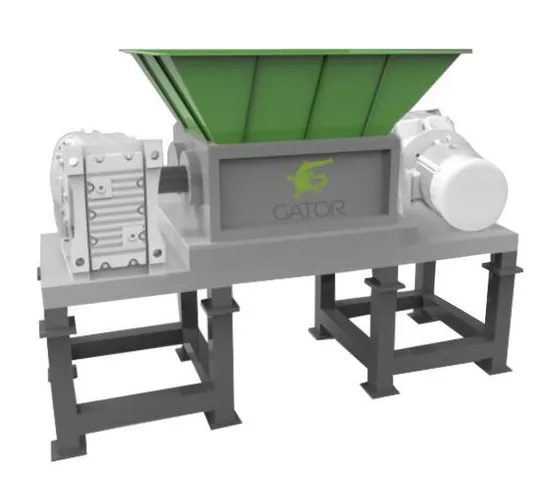

Small Size Two Shaft Shredder Waste Cardboard Shredder

Product Description

Two Shaft Shredders is featured sophisticated design, robust structure, and high efficient shredding result, two shaft shredders are normally used first stage shredder for materials like truck tires, steel drums, organic waste, and MSW, With a two shaft shredder, once the materials is fed into the cutting chamber, the cutting blades with hooks will grab material and then shear it down to strips.
The shreds are directly discharged after cutting without passing through a screen, so the size of shreds is quite random, custom blade widths can match your required sizing. Programmed Reveres rotation of the rotor shaft can prevent damages when overload.Both electrical and hydraulic drive systems available.
Technical Data

Model	SPT1400	SPT1500	SPT1600
Dimension L*W*H	3275*1946*2275mm	3340*1866*2670mm	3716*2240*2670mm
Cutting Chamber C/D (mm)	810 x 580	1200 x 780	1310 x 900
Rotor Diameter (mm)	300	400	450
Blade Quantity	25	20	26
Blade Thickness (mm)	40	50	50
Main Motor Power (Kw)	18.5+18.5	30+30	37+37
Weight (Kg)	4100	6500	8700
