Popular Product Green Energy 60kw Small Wind Turbines Power Generator System

Product Description

Solar & wind hybrid systems product mainly use for home ,street lights system both of them are Economic, Green and Environmentally Friendly .
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
wind turbine :3pcs or 5pcs blades optional; guy cable tower or free stand tower optional;
solar panel :mono or poly panel optional; battery capacity and quantity can optional;
Tanfon Advantages: Installtion service and technical support
Solar & wind hybrid systems product mainly use for home, street lights system
Both of them are Economic, Green and Environmentally Friendly.
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.

TANFON WSH5KW hybrid power system :2000w solar +3000w wind
System Basic Information	Solar panel power:2000W+ Wind turbine power:3000W Suitable for daily power consumption:18-20KWH Allowable Max Loads power:5KW
Solar panel	Cell type: mono Max power :250w Vmp:30V Voc:36V Imp 8.67A Size : 1640*992*40mm Glass:3.2mm Tem pered 25 years power output guarantee Connection:4pcs in series connect,2strings 2)PV bracket: Stainless steel;	QTY 8pcs
Wind turbine	1)Power:3000w Starting wind speed:3m/s Rated wind speed:10m/s Security wind speed:40m/s Rated speed:310 r/m 3years warranty,20year use life 2)Guy cable tower:9m(free stand tower optional)	QTY 1pc	System include: 8pcs solar panel 1set panel rack 1pc PV combiner 1pc wind generator 1set guy cable tower 1pc hybrid controller 1pc pure sine wave inverter 8pcs gel battery 1set cable Total volum:2.2CBM Total weight:950KG
hybrid controller	Input 2000W solar power+3000W wind power DC 96V input ;MPPT intelligent control Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection, Battery-reverse connection protection, Lightning protection,	QTY 1pc
pure sine wave Inverter	Inverter:10KW96VDC 110V/120V/220V/230V/240VAC output, single phase City power and generator charger build in Overload, overcharge, over-discharge protection Fuji brand IGBT material	QTY 1pc

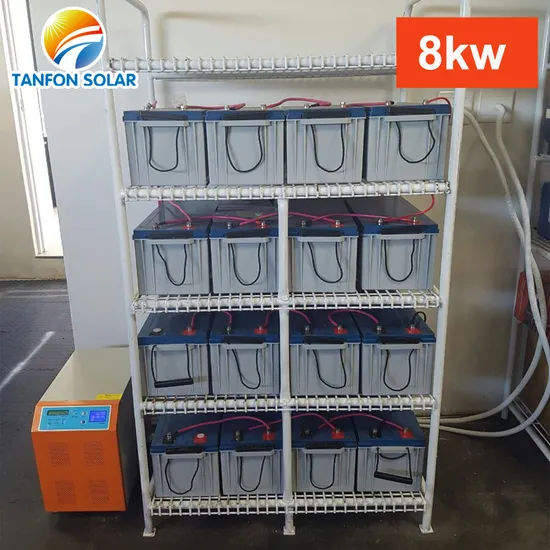

Gel Battery Cable	Capacity:12V/200AH full sealed Solar power gel battery, Service life:6-8 years , Size:522*240*219mm Connect way: each 8pcs in series	QTY 8pcs
	1)8pcs 16mm2*35CM battery cable connect 6pcs 16mm2*1M battery cable connect 2)4mm2 PV cable 50M,10mm2 wind cable 50M 3)terminals and MC4 + 1P63A Battery switch	QTY 1set

Installation from Clients:
FAQ:
1.Are you factory?
Answer: Yes, we are factory, so we can control our quality, we insist use best material whenever.
2.How many watt do I need for my home?
Answer:Normally 5kw is enough, and we sell 5kw for home use the most. If you can offer the loads details, that will be more helpful.
3.How about the warranty?
Answer: solar panels for 10years, other parts 2years. During the warranty, if any question about the quality, we will ship the spare parts to you .We promise our quality.
4.What should I do before purchase?
Answer: check with our sales, see if the wind speed can meet the system, and is that solar system better, or wind solar hybrid system better.
We offer Good service and Good quality goods.
With us, your business in safe, youe money in safe!
