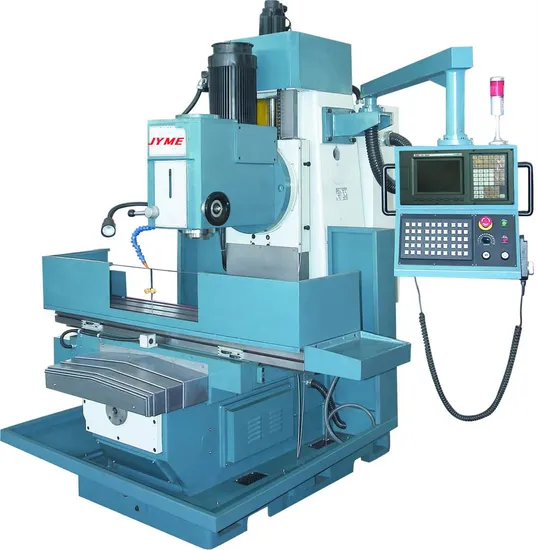

Xk7150 Bed Type Milling Machine Heavy Duty CNC Milling Machine

Product Description

Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
About this productIncludes generated contents
High-Accuracy Machining: Our CNC Vertical Milling Machine XK7150 ensures high-precision machining with a spindle bore of 20mm and a range of spindle speed from 108 to 1400 r.p.m, making it ideal for metal machining applications. High Productivity: With a rapid feed speed of 1-2300 mm/min and a feed speed of 23.5-1180 mm/min, this machine enables fast and efficient processing, allowing you to complete tasks quickly and efficiently. Energy Saving: Our machine features a heavy-duty design and a high-accuracy gear bearing system, reducing energy consumption and minimizing waste, making it an eco-friendly option for users. Long-Lasting Performance: Backed by a 1-year warranty on the machine and a 1-year warranty on core components, you can rely on the XK7150 to provide consistent performance and minimize downtime. Customization Options: As per user request, this machine can be customized to meet specific needs, including color and CNC capabilities, ensuring a tailored solution for your unique requirements.

Specifications	X7150A	X7150
1. Taper of main shaft hole	ISO50
2.spindle sleeve travel	105 mm
3.the spindle end face to the working table distance	100 ~ 630 mm
4.distance between the center of the main shaft hole and the guide rail surface	580 mm
5.spindle box rotation Angle	±20°	±30°
6.spindle speed range	108 ~ 1400 rpm	20~1600 rpm /Frequency conversion
7.work surface size	2000x400mm	1650x400 mm
8. table stroke longitudinal/transverse/vertical	1400/480/500 mm	1000/500/550 mm
9. table feed range vertical/horizontal/vertical	18 levels 23.5-1180/23.5-1180/11.75-590
10.the table fast moving speed longitudinal/horizontal/vertica	2300/230/1150mm /min
11.table "T" groove number/width/spacing	3/18/100 mm
12.the main motor power	7.5kW
13. Motor feed motor power	1.5kW
14. cooling pump motor power	90 W
15. cooling pump flow	25 L/min
16. the overall size of the machine (L x W x H)	2390x1860x2220mm
17. the net weight of the machine/gross weight	4690/5500 Kg

Technical specifications:
