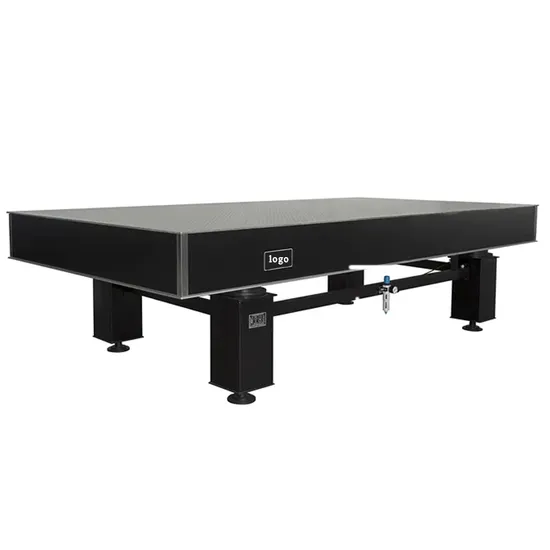

Zdt-P-009006 Factory Price Pneumatic System Vibrating Optical Workbench

Product Description

Inherent Frequency	1.0-2.0Hz, vertically; 1.0-2.0Hz, horizontall
Vibration Isolation Structur	Ultra thin air spring
Leveling Typ	Automat
Vibration Damping Typ	Porous quasi-laminar flow damping element with diffuse
Total Table Heigh	800mm
Working Air Pressur	0.2-0.4MPa
Compressed Air Sourc	Silent compressor (noise level) <50dB
Vibration Isolating Efficiency	8288%@5Hz, 8695%@10Hz, vertically 7886%@5Hz, 8492%@10Hz, horizontall
Re-leveling Accurac	±0.1mm
Table Top Flatnes	≤0.05mm/m²
Surfaced Roughnes	≤0.8μm, matt surface finis
Isolator Height Adjustment Rang	±10mm
Mounting Holes	M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
Top Skin	5mm
Bottom Skin	4mm
Material	Stainless Steel

Products Description

Model	Dimension(mm)	Inherent Frequency	Height(mm)	Load capacity(Kg)
ZDT-P09-06	900×600	Vertical:2.0Hz Horizontal:2.0Hz	800	135
ZDT-P10-08	1000×800	Vertical:2.0Hz Horizontal:2.0Hz	800	200
ZDT-P12-09	1200×900	Vertical:2.0Hz Horizontal:2.0Hz	800	270
ZDT-P15-10	1500×1000	Vertical:2.0Hz Horizontal:2.0Hz	800	375
ZDT-P18-10	1800×1000	Vertical:1.8Hz Horizontal:2.0Hz	800	450
ZDT-P20-10	2000×1000	Vertical:1.8Hz Horizontal:1.8Hz	800	500
ZDT-P12-12	1200×1200	Vertical:2.0Hz Horizontal:2.0Hz	800	360
ZDT-P15-12	1500×1200	Vertical:2.0Hz Horizontal:2.0Hz	800	450
ZDT-P18-12	1800×1200	Vertical:1.8Hz Horizontal:1.8Hz	800	540
ZDT-P20-12	2000×1200	Vertical:1.8Hz Horizontal:1.8Hz	800	600
ZDT-P24-12	2400×1200	Vertical:1.5Hz Horizontal:1.8Hz	800	720
ZDT-P30-12	3000×1200	Vertical:1.5Hz Horizontal:1.8Hz	800	900
ZDT-P35-12	3500×1200	Vertical:1.5Hz Horizontal:1.8Hz	800	1050
ZDT-P40-12	4000×1200	Vertical:1.2Hz Horizontal:1.8Hz	800	1200
ZDT-P50-12	5000×1200	Vertical:1.2Hz Horizontal:1.5Hz	800	1500
ZDT-P60-12	6000×1200	Vertical:1.2Hz Horizontal:1.5Hz	800	2000

Certifications Company Profile Lidetai technology can design for you with the solutions for different experimental environment, different sites and different experimental conditions. Lidetai is a professional company specializing in researching and development, design, production, sales and service. We are the only enterprise who set and comply the "precision isolation" production standard and shaped the unique culture of our own. Since 2000, Lidetai formally established sale offices and after-sales service center in six major district of China. For many years, our clients from the universities and scientific research institutions ranging from the fields of physics, laser, optical, mechanical, electronic information to precision measurement, precision processing, biological engineering, and electro physiology. Sticking to the rigorous practical attitude, we build up a very good partnership with our clients. We are doing our best to make our clients satisfied. Our Advantages
