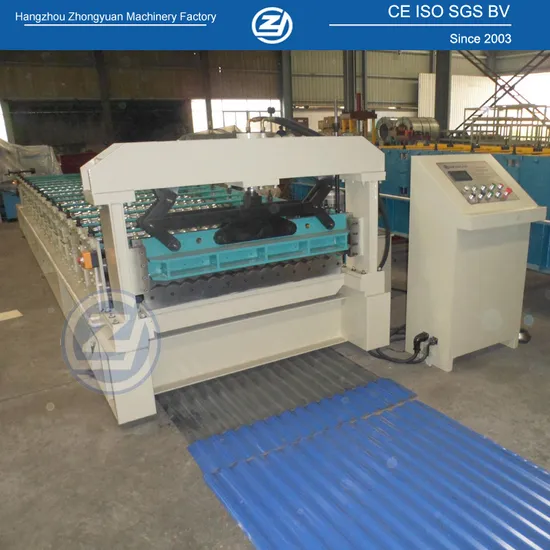

Metal Roofing Cold Sheet Profile Making Roll Forming Machine

Product Description

Factory Lifetime Service!
Metal Roofing Cold Sheet Profile Making Roll Forming Machine with ISO9001/Ce/SGS/Soncap
Why choose this machine?
1. Designed by 25 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
Improved structure, more stable cutting performance.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft
8.Technician can be sent to your factory to install the machine and train your workers

1. Parameter machine

Item		Specification
Material	Type	Plate steel
	Thickness(mm)	0.3-0.8
	Yield strength(mpa)	235-345
Roller material		45#Chrome steel
Forming speed(m/min)		About 30
Output speed(m/min)		20
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5KW
Hydraulic power		2.2KW
Machine size		About 9*1.6*1.5m
Machine weight		About 8 tons

2. Components of machine

Decoiler		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table		1set

3. Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
4. About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

Capacity: 12-15 sets/month
Delivery: in only 5-8 weeks for urgent order
Have our own tool center. 12 sets CNC machines.
Over the past 10 years, our R&D members dedicated in make better machines.
5. We garantee:
Machine lifetime service
Technician overseas services.
Please feel free to contact us for more information!
FRQ
1) Q: Are you manufacturer or trading company?
A: We are professional manufacturer for metal cold roll forming machine since 2003.
Our efforts are devoted to the research and development of how to provide customers with high-quality and durable roll forming machines.
2) Q: Do you provide installing and training overseas?
A: Yes. We can send technician to install the machines when you get machines in your factory.
Also we provide operation manual and installation video to guide your installation.
3) Q: How is your after sales support?
A: For our roll former, 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
4) Q: How does your factory do regarding quality control?
A: We choose famous steel company to buy raw material for our machines,
All-in -House processing way to guarantee part of machines quality,
Our company has successfully established and passed the ISO9001 quality insurance system,
Also they had been approved with CE certificate.
Quality control complies with ISO9001 .
5) How can I trust you that machines pasted testing running before shipping?
A: 1) Each machine will be inspected in our Quality Inspection Department .
Buyers will get detail inspection video and record for his ordered machines.
2) We welcome your visit us and test machine by yourself in our factory. Or you arrange your friends or partner in China to do inspection before delivery.
6) Q: Do you sell only standard machines?
A: No. We can design machines as per your request. For example, your profile drawing, your special technology request, etc.
7) Q: What is your warranty?
A: For our made roll forming machines , guarantee 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
8) Q: How do you guarantee I can get good quality machine from your company ?
A: We say you can get good quality machine from us not to boast about how great we are. We have so many successful cases with our customers. For example, one customer from Macedonia sent email to feedback that he is happy for our made one set of roof and wall roll forming machine and one set of step tile machine which were bought in 2009.
