20L Rubber Kneader Internal Banbury Mixer Machine

Product Description

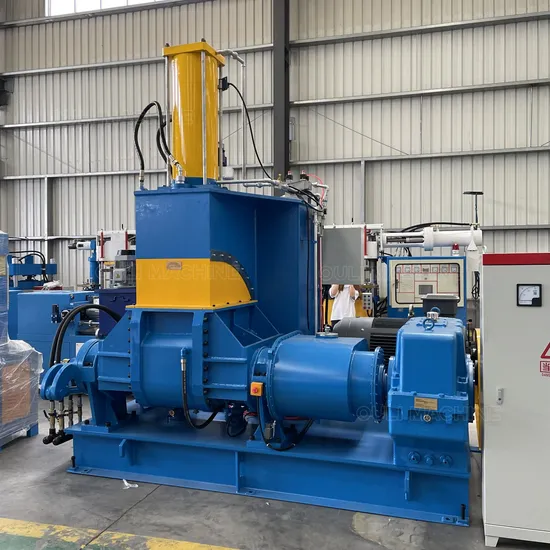

20L Rubber Kneader Internal banbury Mixer machine
Product Description
This Rubber Dispersion Kneader(banbury mixer) is mainly used for plasticizing and mixing of natural rubber,synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
Closed plastic mixing machine referred to as rubber kneader machine.
The main component of the rubber kneader machine is the mixing room, also known as the plasticizing room, the upper part is the feeding device, the lower part is the discharging device mouth, and the upper and lower part have a bolt; When the upper and lower top pins are closed, a closed plasticizer is formed.
There is a pair of rotors rotating opposite each other in the plasticator room. The rotors are pear-shaped in cross section and
Z-shaped in longitudinal direction.
The rotor speed is slightly different, and there is a constant speed ratio between the rotors and the rotor and the wall of the plasticator room. The outside wall of the plasticizer has a cooling (heating) jacket to heat and cool the material.

Model		XSN-3	XSN-10	XSN-20	XSN-35	XSN-55
Total volume of mixing chamber(L)		8	25	45	165	125
working volume of mixing chamber(L)		3	10	20	110	55
Driving motor power(KW)		7.5	18.5	37	280	75
Speed ratio of rotors		32/25	32/25	32/26.5	32/24.5	32/26
Tilting motor power		0.55	1.5	1.5	2.2	2.2
Tilting angle(°)		140	140	140	140	140
Size(mm)	Length	1670	2380	2355	3200	3360
	Width	834	1353	1750	1900	1950
	Height	1850	2113	2435	2950	3050
Weight (KG)		1038	3000	4437	6500	7850

Model		XSN-75	XSN-95	XSN-110	XSN-150	XSN-200
Total volume of mixing chamber(L)		175	215	250	325	240
working volume of mixing chamber(L)		75	95	110	150	160
Driving motor power(KW)		110	132	185	220	400
Speed ratio of rotors		32/26	32/26	30/24.5	30/24.5	30/24.5
Tilting motor power		4.0	5.5	5.5	11	11
Tilting angle(°)		140	140	140	140	140
Size(mm)	Length	3760	3860	4075	4200	4520
	Width	2280	2320	2712	3300	3400
	Height	3115	3320	3580	3900	4215
Weight (KG)		10230	11800	14200	19500	22500

Our Advantages
Installation Instructions
Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products:1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.We warmly welcome customers visit our factory and technology discussion is highly appreciated.
Customer distribution
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
