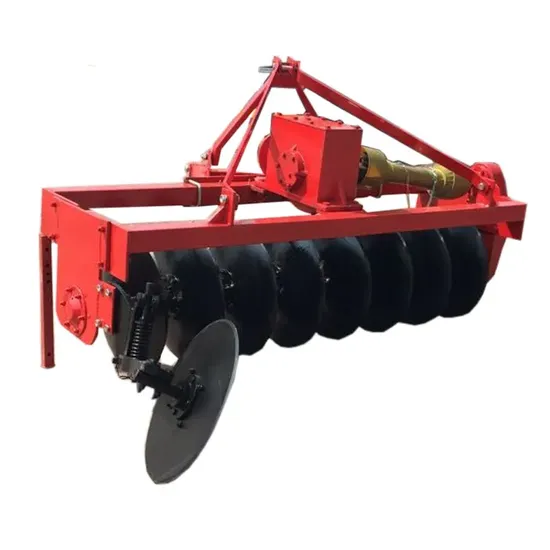

1lyq Series Rotary-Driven Disc Plough (China DISC PLOUGH MANUFACTURER)

Product Description

1lyq Series Rotary-Driven Disc Plough (China DISC PLOUGH MANUFACTURER)
Product introduction:
1LYQ series rotary-driven disc plough are driven cultivation machine. They adopts 3-point suspension central gear and side gear transmission structure,which can be matched to 18-150HP tractors. It uses pot-shape disc, The plough disc is driven by the tractor's PTO shaft, and can make full use of the power of the tractor,So it can improve cultivating quality and reduce working cost. The plow mainly used for cultivating on paddy field with the advantages of non-tangling weeds. it turns up soil to make soil upturned, in lines and level when it works in paddy-field. They also have advantages of racing against time, saving labor,working efficiently and low cost etc.
Technical parameters:

Model		1LYQ420	1LYQ-520	1LYQ-522	1LYQ-622	1LYQ-722	1LYQ-822	1LYQ-922	1LYQ-1022	1LYQ-1122	1LYQ-1222
Matched power (hp)		18~25	25~35	35~45	50~60	60~70	70~80	80~95	100~130	120-140	120~150
Working width (cm)		88	110	110	132	154	176	198	230	253	276
Dia. Of disc (mm)		500		560					560 (or 610, 650)
Working depth (mm)		120~200
PTO speed (r/min)		540~740
Working speed (km/h)		3~4
Oil cost (kg/acre)		0.60~0.75
Adjustable angle		28±5°
Weight(kg)		240	276	300	321	357	410	460	600	650	700
O.D.(mm)	length(L)	965	1075	1075	1210	1325	1440	1555	1670	1785	1900
	width(W)	1365	1585	1585	1805	2025	2245	2465	2860	3090	3320
	height(H)	1000	1000	1050	1050	1050	1050	1050	1150	1150	1150
