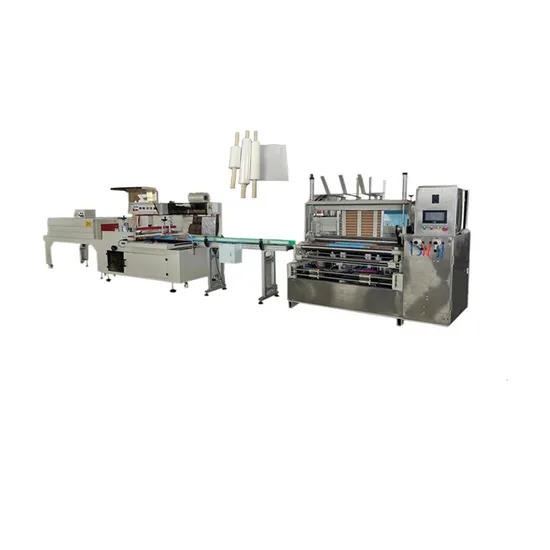

pneumatic Lifting Servo Rewinding Machine Non Woven SPA Bed Sheet Slitting and Rewinding Machine

Product Description

Product Description

Main Characteristic
1.The equipment requirements: unrolling materials, perforating, slitting, counting, rewinding simultaneously. can slit different size at a time, adjust easily.
2.This equipment adopts PLC touch screen control system, simple operation, stable performance,
3.Equipment use servo device, can be unlimited set distance from lineup.
4.Device equipment with automatic counting stop function(infrared):
5.Equipment with pneumatic automatic feeding device.
6.The normal production of machine speed: 120-200m/min(according to raw materials)
7. With a set of adjustable tightness rewinding device, convenient adjust ment of rewinding making the finished product
Precise quotation based on following information
1. Maximum raw material width
2.normal maximuim perforated distance is 2000mm, but can adjust as your required(18000 100000 etc) by our engineer before machine shipment.
3.easy to use, easy to adjust (automatic)
4.slitting knives normal 3-4cuts of DL1200, 10Cut of DL1800, which can be customized
5.knives options: round knives or air knives(fit for material width wider)
6.material style can be varies: plastic net, paper, pe paper, nonwoven, sms, woodpulp etc
7. can added cross cut mold, face hole mold, C fold device, glue spraying device, auto fyling cuts etc Product Parameters

Product name	DL-F800 SMT Slitting Rewinding Machine
Place of Origin	China Jiangxi
Brand Name	Dele
Dimension(L*W*H)	2960*1740*2050mm
	1year
After-sales Service Provided	Video technical support, Online support
Key Selling Points	Automatic
Production speed	30-100m/min
The rated voltage	380v
The total power	3.5kw
Equipment weight	1200kg

Detailed Photos
Company Profile

Packaging & Shipping
