Product Description

Application

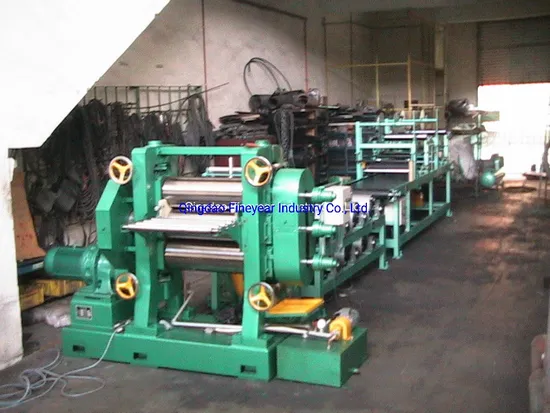

The calender is mainly used for single-face and double -face once continuous coating of card, canvas and other woven material, sheeting rubber stock , calendaring thin rubber sheet of inner liner and airtight layer of the radial tire.
Structures features
1.Roll is made of chilled cast iron alloy , through finish machining, with smooth and wearable surface, arranged in "s" shape , drilled on roll circumference, having good heating and cooling effects.
2.For increasing calendaring accuracy, set preloading device, axis cross device and bending resistance device, etc. On rolls in order to eliminate bending caused during working.
3.Single motor drives each calendaring roll, friction ratio of which can be regulated by pulling key so as to meeting different processes.
4.Emergency stop is available for protecting operators and equipment.
5.Electric control adopts imported PLC , guarateeting control on the safe side, easy operation and high automation.
Technical parameters

Model and specification	Roll diameter ×Length	Linear speed of front (m/min)	Thickness for calendering(mm)	Rolling width(mm)	Motor power(KW)	Weight(t)
XY-2I1120	360x1120	1.5~15	≥0.20	900	40	8
XY-2I1400	400x1400	1.5~15	≥0.20	1200	55	12
XY-2I1600	560x1600	2~20	≥0.20	1400	75	25
XY-2I1730	610x1730	2~20	≥0.20	1500	90	45
XY-2I2030	660x2030	2~20	≥0.20	1800	110	80
XY-2I3000	820x3000	2~20	≥0.20	2800	110	158

It is mainly used for one-face and double face once continuous coating rubber sheet of fiber cord, canvas and other woven material ,sheeting rubber stock, calendaring thin rubber sheet of for inner liner and airtight layer of meridian tyre.
1.It adopts peripheral drilled roll with good heating and cooling effects.
2.Axis cross ,pre-loading,pull-back device are set to ensure the product's precision.
3.Each roll is driven by independent motor and speed ratio is adjustable to meet different processes.
4.Control system adopts PLC, safety and reliability , easy operation and high automation.
It is mainly used for one-face and double face once continuous coating rubber sheet of fiber cord, canvas and other woven material ,sheeting rubber stock, calendaring thin rubber sheet of for inner liner and airtight layer of meridian tyre.
1.It adopts peripheral drilled roll with good heating and cooling effects.
2.Axis cross ,pre-loading,pull-back device are set to ensure the product's precision.
3.Each roll is driven by independent motor and speed ratio is adjustable to meet different processes.
4.Control system adopts PLC, safety and reliability , easy operation and high automation.

Model XY-4Γ1120 XY-4Γ1200 XY-4Γ1600 XY-4Γ1730 XY-4S660 XY-4S1200 XY-4S1250 XY-4S1500 XY-4S1730 XY-4S2030 XY-4S2250 XY-4S2500 XY-4S3400

(mm) Roll diameter		360	400	560	610	356	400	450	510	610	660	710	820	900
(mm) Roll working length		1120	1200	1600	1730	660	1200	1250	1500	1730	2030	2250	2500	3400
(m/min) Drive roll liner speed		2~20	2.5~25	3~30	4~40	3~30	3~30	3.5~35	3~30	5~50	5~50	5~50	5~50	5~50
(mm) Max.product width		900	1000	1400	1500	500	1000	1200	1300	1500	1600	2000	2200	3100
(mm) Min.product thickness		0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
(kw) Motor power		55	75	144	160	22×4	30×4	37×4	45×2, 55×2	75×2, 90×2	90×2, 110×2	110×2, 132×2	160×4	220×4
(mm) Overall dimension	(L)	5010	6320	6180	7140	5350	5780	6060	7150	8380	8550	9350	10760	16970
	(W)	1610	2260	2990	3220	2100	3330	3150	2650	3520	3520	4080	4400	5500
	(H)	2560	2500	4110	4670	2350	3940	3600	3750	4740	5060	5410	5960	8570
(t) Weight		13	18	45	64	12.5	30	35	45	65	73	82	90	165
