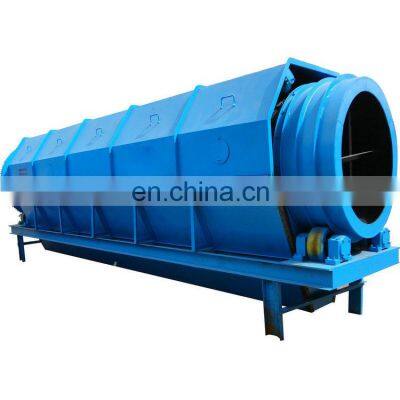

Rotary type biomass trommel screen / municipal solid waste trommel screen

Product Description

Product Description
Rotary type biomass trommel screen / municipal solid waste trommel screenProduct DescriptionTrommel screen machine is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen plugging caused by various vibrating screens when screening wet materials. It improves the output and reliability of the screening system. Trommel screen machine is suitable for screening materials of various properties, as well as moist and easy-clogging materials such as coal, coal gangue, coke raw lime, etc. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. Advantages: 1) It is multi-function highly economically .2) The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.3) The design has a end user flexibility that allows for screen replacements depending on mesh sizes4) Multiple layers of screen to enhance the sifting process.5) Trommel screen has high efficiency and a big capacity for different volumes of materials Working PrincipleDue to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum. technical parameters ModelCapacity (T/H)Motor (KW)Drum size (mm)feed size (mm)Overall size (mm)Weight (KG)GTS-10155 -2031000x1500less than 200 mm2600x1400x17002200GTS-102010 -3041000x2000less than 200 mm3400x1400x22002800GTS-122520-805.51200x2500less than 300 mm4200x1500x26804200GTS-153030-1007.51500x3000less than 300 mm4500x1900x28205100GTS-154550-120111500x4500less than 400 mm6000x1900x30806000GTS-184880-150151800x4800less than 400 mm6500x2350x40007500GTS-2055120-250222000x5500less than 400 mm7500x2550x48009600GTS-2265200-350302200x6500less than 400 mm8500x2750x500012800Note: Above capacity is for reference, different materials with different capacity. Please contact Sinolion for more information.if you want to get the briquette machine , you need use our briquette machine below :if you need more photos and video , please click here to contact me :Packaging & Shipping Customer if you want to get the briquette machine , you need use our briquette machine below :if you need more photos and video , please click here to contact me :Company Information if you want to get the briquette machine , you need use our briquette machine below :if you need more photos and video , please click here to contact me :FAQQuestion 1: Can you give me a solution and quotation?Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc. Question 2: Way of paymentAnswer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated. Question 3: What’s the delivery time after I pay the deposit ? Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order. Question 4: After order equipment how do we slove the equipment installing?Answer: For a small single equipment, we offer you user manual, customer will install and commissioning as operating introduction; For a complete production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally. Sinolion has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety. Question 5: How long of your machine quality guarantee terms?Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request. Contact Us If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
