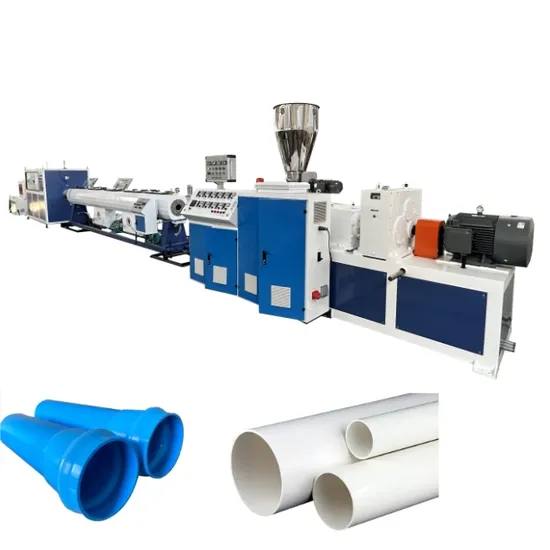

PVC Pipe Making Plant Equipment UPVC CPVC Pipe Extrusion Machinery Manufacturing Machine

Product Description

Product Description

Our company has fully PVC pipe extrusion machinery PVC pipe making plant equipment , including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line. Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula. We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc. Our Cheap price Plastic PVC pipe extrusion machinery PVC pipe making plant equipment can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
PVC Pipe Making Plant Equipment UPVC CPVC Pipe Extrusion Machinery Manufacturing machine
1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient isonly 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes. 3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, potlife, storage period, release of harmful substances.

Machine Details

Model	Pipe diameter	Extruder	Max. Output (kg/h)	Max. speed(m/min)
PVC-50X2	16-50	SJSZ51/105	150	6
PVC-110	50-110	SJSZ51/105	150	6
PVC-160	63-160	SJSZ65/132	300	5
PVC-250	110-250	SJSZ80/156	400	3.5
PVC-315	160-315	SJSZ80/156	400	3
PVC-450	250-450	SJSZ92/188	700	1.5
PVC-630	315-630	SJSZ92/188	700	0.9

Conical Twin Screw Extruder.
Siemens Motor , ABB inverter .
Quality Screw and Barrel.
Air Cooled Ceramic Heater.
High Quality Gearbox and Distribution Box.
Better Cooling of Gearbox. Advanced Vacuum System.
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
Extrusion Die Head.
Moving Device of Die Head.
Die Head Rotary Device. CNC Processing.
High Quality Material.
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or
multi-layer pipe.
Vacuum Tank.
Strong Cooling for Calibrator.
Better Support for Pipe.
Pressure Relief Valve. Double Loop Pipeline.
Water, Gas Separator.
Full Automatic Water Control.
Centralized Drainage Device Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Haul off unit.
Pipe Clamping Device Quality Spray Nozzle Pipe Support Adjusting Device Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
Cutter
Aluminum Clamping Device.
Advanced Hydraulic System.
Dust Collection System.
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer can set the length of pipe they want to cut.
Full Automatic Belling Machine
To make socket at pipe end which is easy for pipe connection. There are three types of belling type: U type, R type and Square
type. We provide belling machine which can finish belling of pipe on line fully automatic. From minimum size 16mm to maximum size
1000mm, can with multi heating oven and belling station.

Factory Introduction

Qiangsheng is a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film, bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).And we are have more than 20 years' experience of making plastic machines: double-screw extruder, single-screw extruder,PVC ,PE,HDPE,PPR,pipe line. PVC WPC and PVC window profile line,PVC and ABS sheet machine,PVC foaming machine,PP,PE pelletizing machines and others auxiliary machine:crusher,mixer ,pipe belling machine ect. Our products have been sold to many countries around the world ,like Egypt,Thaliand, Malaysia, India, Russia, Egypt, Turkey, Zambia, Algeria, Indonesia ect. The High quality, good service, as well as the low price of our machines has impressed our customers, and we have established a long-term relationship with each other.
