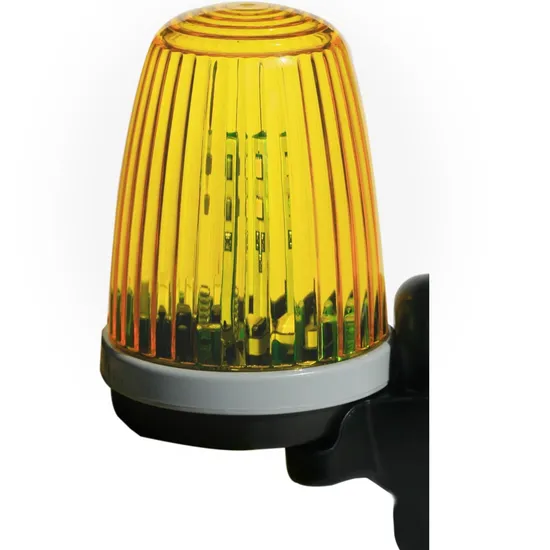

Hiland F5020 Flashing Warning Signal LED Alarm Light for Automatic Gate Door Opener

Product Description

Technical Characteristics

Model	Type	Loading capacity	Working voltage	Size	CE	Water proof
F5000	LED	<5W	12-24V AC/DC or 85-265V AC	Φ90*125mm	√	Yes
F5010			12V AC/DC
F5020			85-265V AC
F5001	Bulb	15W	24 V AC/DC
F5002	LED		230V AC/DC
F5096 (F5000+bracket)	LED	2.5W	12-24V AC/DC or 85-265V AC
F5093 (F5010+bracket)			12V AC/DC
F5092 (F5020+bracket)			85-265V AC
F5095 (F5002+bracket)	Bulb	1.5W	24 V AC/DC
F5090 (F5001+bracket)			230V AC/DC
F6000	LED	2.5W	12-240V AC/DC	Φ76*125mm

Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. Please be sure the power is off before connecting, the product is produced without fuse;
3. This system must not endanger life or property during the running failure or its security risks have been eliminated
Installation Instruction
1. Connect the AC 110 power supply with Terminal CN1, then the lamp will flicker, the flash working flicker frequency is 1HZ.
2. J2: It controls lamp in flickering or lighting. J2 at off , lamp flickers in 1HZ when power on; J2 at on, lamp keeps lighting when power on
Attention: it is forbidden to keep the lamp lighting for a long time when J2 at on
