Product Description

Product Description

Diameter(mm)	Length(mm)	Weight(kg)
4	1000	0.02
5	1000	0.03
6	1000	0.045
7	1000	0.07
8	1000	0.08
10	1000	0.125
12	1000	0.17
15	1000	0.24
16	1000	0.29
18	1000	0.37
20	1000	0.46
22	1000	0.58
25	1000	0.72
28	1000	0.9
30	1000	1
35	1000	1.4
40	1000	1.73
45	1000	2.18
50	1000	2.72
55	1000	3.27
60	1000	3.7
65	1000	4.64
70	1000	5.32
75	1000	6.23
80	1000	7.2
85	1000	7.88
90	1000	8.93
100	1000	11.45
110	1000	13.36
120	1000	15.49
130	1000	18.44
140	1000	21.39
150	1000	24.95
160	1000	27.96
170	1000	31.51
180	1000	35.28
190	1000	39.26
200	1000	43.46
220	1000	52.49

Custom CNC Machining Parts Services
Quotation	According to your drawing(size,material,thickness,processing content,and required technology,etc)
Material	Metal: Stainless steel, aluminum alloy, brass, steel;Plastic:PEEK, Nylon, PC,,etc
Process	CNC Milling, CNC Turning, Auto lathe,Drilling Laser Cutting,etc
Surface	Treatment Powder coating, anodizing, polishing, electroplating,etc
Processing equipment	CNC lathe, CNC milling machine, drilling machine; Core machine, Cutting machine
Accept drawings	CAD (DXE.DWG), PDF, Pro/Engineer
Tolerance	+/-0.02mm
Quality Assurance	ISO9001:2015
Delivery time	1-2 weeks for samples, 3-4 weeks for mass production
Payment	TT, Trade Assurance, Paypal, WestUnion

Special Properties of PEEK PEEK(Polyetheretherketone)is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties. GuangDong Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further. PEEK-1000 This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important. PEEK GF30 (30% Glass-Reinforced) The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability, especially at temperatures above 300°F (150°C). PEEK CA30 (30% Carbon Fiber-Reinforced) The addition of carbon fibers enhances the compressive strength and stiffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides more thermal conductivity than unreinforced PEEK -- increasing heat dissipation from bearing surfaces improving bearing life and capability. PEEK-HPV (Bearing Grade) Carbon fiber reinforced with graphite and PTFE lubricants, our newest grade of PEEK offers the lowest coefficient of friction and the best machinability for all PEEK grades. An excellent combination of low friction, low wear, high LPV, low mating part wear and easy machining, make it ideal for aggressive service bearings.
Application ApplicationAppliPEEK (Polyether Ether Ketone) excels in demanding sectors due to its high strength, thermal stability, and chemical resistance.Key applications include aerospace components, automotive parts, oil and gas equipment, medical devices, electrical insulation,and chemical processing elements. Its versatility also extends to food processing, semiconductors, sports equipment, and marine industries, offering durable, lightweight solutions in harsh environments.Such as, 1. Seals, Gears, Fittings. 2. Electrical components. 3. Medical instrument parts. 4. Aerospace parts, Valve Seats. 5.Semiconductor machinery components. 6. Food processing machinery components. 7. Bearings and bushings (bearing grade PEEK). 8.Pump and valve components, Wafer Carriers, Piston Rings.

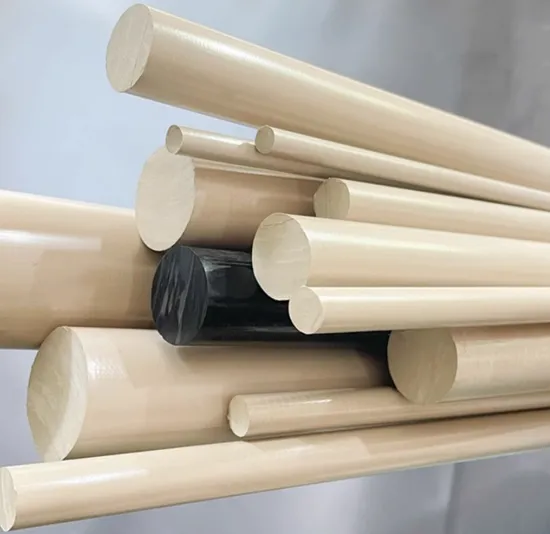

PEEK rod PEEK rod, Chinese name is polyetheretherketone rod, is extruded from PEEK raw materials. PEEK rod not only has excellent heat resistance than other high-temperature resistant plastics, but also has high strength, high modulus, high fracture toughness and excellent dimensional stability. PEEK rod has good toughness and excellent fatigue resistance to alternating stress, which is the best of all plastics, and is comparable to alloy materials.

FAQ Q1. Is it OK to print my logo on product?
A: Welcome. Please send us your logo file before our production and confirm the design firstly based on our sample.
Q2. Is the sample free?
A: Yes, sample and shipping fees will be charged at EXW price and will be refunded after we confirm the order.
Q3. How about your lead time?
A: For samples, 3-12 days depends on different situations.
For mass order, 25-35 days depends on different situations.
Q4. How about the package for the products?
A: We have neutral polybag and some neutral color packaging for the products.
If customized color box, we could also provide cost and samples for further check.
Q5. What is your MOQ?
A: different product will have different MOQ.
Q6. How can you control of product quality?
A: We always focus on quality, all the goods will be 100% tested 4 times before shipment.
Q7. Do you offer warranty?
A: We provide 12 months warranty for our products. Once there are any quality problems, we will offer you best solution
accordingly.
Q8. How about payment?
A: For small order, 100% in advance, for other orders, 30% deposit in advance, 70% balance before delivery. You can pay through Assurance, TT, Paypal, Western Union, etc..
