Small lab use mini wool and cotton carder with 5~10 KG capacity

Product Description

Product Description

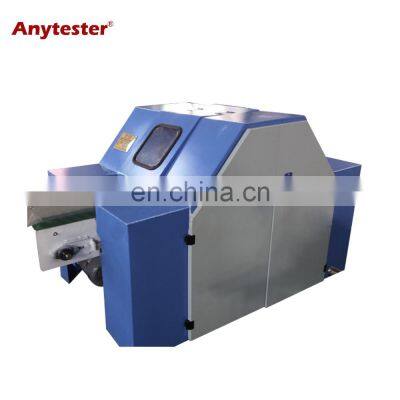

Product DescriptionHY1002 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differential moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.SpecificationsFeeding width 400mmWorking width 360mmCylinder diameter Φ450mmDoffer diameter Φ220mmLicker-in diameter Φ165mmWorking roll diameter Φ110mmWipe roll diameter Φ90mmSpeedAdjustable (Frequency converter control)Max. fiber lengthabout 100mmVillus bucket power1.5KWOutput capacity5~10kg/hMaine machine powerAC220V/380V, 50/60Hz, 2.2KWDimension1350mm*950mm*900mm (main machine)Weight650KgDetailed Images★ Mini type machine, save researching cost and easy to operate and maintain★ With full-closed protective cover.★ Imported frequency converter control, high efficiency.★ It is driven by a 2.2 kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.★ Can be used for wool fiber or chemical fibers.★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web★ It can produce web or sliver according to customer's selection. Packing & DeliveryPackagingSize(cm)180(L) * 110 (W) * 110 (D)Weight650 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
