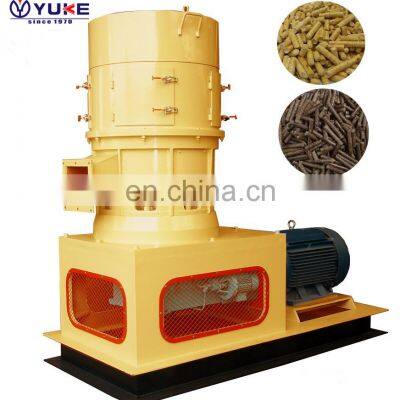

home use Flat die pellet machine /Small wood pellet mill pillet machine for sawdust/fertilizer/animal feeds pellets

Product Description

Product Description
Mill Description
home use Flat die pellet machine /Small wood pellet mill pillet machine for sawdust/fertilizer/animal feeds pellets
home use Flat die pellet machine /Small wood pellet mill pillet machine for sawdust/fertilizer/animal feeds pellets is machine presses that are used to create pellets from some type of powdered material. Machinery of this type is common in preparing feeds for livestock, as well as creating a wide range of household products. There are several different common configurations of the pellet mill, varying in size, design, and mode of operation.
home use Flat die pellet machine /Small wood pellet mill pillet machine for sawdust/fertilizer/animal feeds pellets  is widely used in making biomass fuel pellets for home use, small scale plant or horse bedding (animal bedding) pellets.
There are two different type pellet machine:
 flat die pellet machine Part Introduction:
Main Technical parameter flat die pellet machine

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Measurement(mm)	Pellet Size(mm)
YKPM 120B	3	60-100	100	750*320*680	2-8
YKPM 150B	4	90-120	110	800*450*700
YKPM 200B	7.5	200-300	230	1650*820*1200
YKPM 230B	11	300-400	320	1050*480*930
YKPM 260B	15	400-600	360	1180*540*1000
YKPM 300B	22	600-800	380	1240*540*950

Above technical parameters are for reference, can be separately designed according to customer`s actual situation.
Features of flat die pellet machine:A.Simple structure, easy operation, high automation, and safety.
B.Especially suitable for home use and small factory.
C.small in size and lightweight,small footprint and high forming rate.
D.Portable roller and die are cheaper, easier to clean and faster to change than ring die pellet
E.Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse.
F.The pressing die and main shaft adopt 4Cr13, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRc.
G.The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.
H.The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.
Raw Materials of  flat die pellet mill:Final pellets can be made from any type of Agro-Forestry waste. Including but not limited to wood, sawdust leafs, grass,corn stalks, cardboard, switch grass, pinecones, hay, nut-shells, corn cobs, tobacco waste, straw, animal waste, and so on.
➤➤Click Now for Catalogs & Factory Price!
Pellet Detailes
Biomass flat die pellet machine and die details:
Final Pellets
Biomass flat die pellet machine final pellets:
Customer Site
➤➤Click Now for Catalogs & Factory Price!
Packing & Delivery
1.home use Flat die pellet machine /Small wood pellet mill pillet machine for sawdust/fertilizer/animal feeds pellets packing in wood case(small machine) and standard export container,or as your requirement.
2.The delivery will be at 15-30 days after prepayment.
Certifications
Our Company and RFQ
RFQ of Shanghai supplier Biomass flat die pellet mill
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How can I choose a pellet machine?
A: To buy a biomass pellet machine, you need to know your raw material composition and their proportion, the moisture content of your raw material, size of your biomass, you local voltage and frequency, as well as the aim you make biomass pellets.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
