11ax WiFi 6 Wireless Ap/Router 3657Mbps, Wi-Fi 6 4*4
| US$357.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
AX880
Transfer Rate
11ax 3657Mbps
Firewall
Firewall
Ports
0
Port Structure
1wan+1LAN
Application
Enterprise, SOHO, Hotel, Shopping Mall, Airport, Station
Network
WiFi
Performance
11ax WiFi6
Material
Metal+ABS
Cloud
Support
Openwrt
Support
Trademark
Yuncore, OEM
Origin
China
HS Code
851762
Production Capacity
10000/Week
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 7.00cm
Package Gross Weight
1.000kg
Product Description

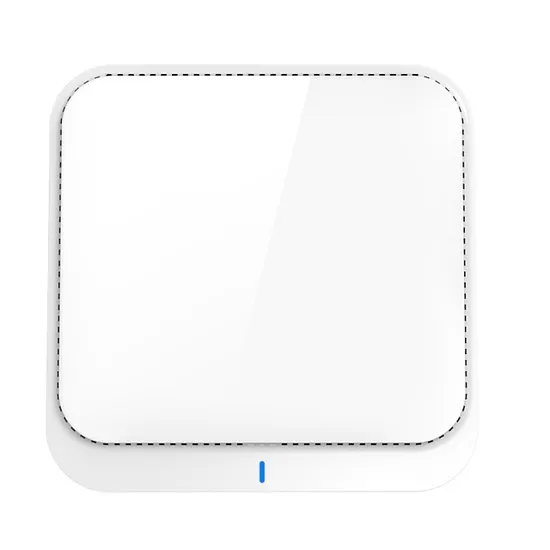

AX880 is an 11ax Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming.
It comply with 802.11ax, 8*8 MIMO technology, dual band, up to 3657Mbps data rate; equipped with 2.5G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
It is with QSDK driver, support seamless roaming, 5G priority, OFDMA and DL/UL-OFDMA; What's more, this device can work with OpenWRT firmware also, our technical firmware team can provide efficient technical support for fast firmware development.
| Hardware | |
| Chipset | IPQ8072A +QCN5054+QCN5024+QCA8081*2 |
| Standard | 802.11ax/ac/b/g/n |
| DDR3 | 256MB(16bit)*2=1GB |
| Flash | NOR-8MB and NAND-128MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G Wi-Fi standard | 802.11b/g/n/ax |
| 5.8G Frequency | 5150~5850MHz |
| 5.8G Wi-Fi Standard | 802.11 a/n/ac/ax |
| Interface/ | 1 * 10/100 /1000/2500Mbps RJ45 WAN Port |
| 1 * 10/100 / 1000/2500Mbps RJ45 LAN Port | |
| 1 * Reset | |
| 1* Bluetooth(optional) | |
| 1 * DC Port | |
| Antenna | IPEX Connector, 4*3dBi omni antennas |
| Data Rate | 3657Mbps ( 2.4G: 1182Mbps (11ax 4x4); 5.8G: 2475Mbps (11ax 4x4)) |
| End Users | 220+ |
| RF Power | 2.4g ≤ 22dBm 5.8g ≤ 22dBm |
| DC | 12V----3A |
| PoE | 48V (IEEE 802.3at+) |
| LED light | Sys; 5.8G wifi; 2.4G wifi; WAN; LAN |
| Max Power Consumption | ≤ 35W |
| Size | 198mm * 198mm * 41.02mm |
| Weight | TBD |
| Working Temperature | -20°C to 45°C |
| Storage Temperature | 0°C to 70°C |
| Humidity | 5%~95% (non-condensing) |
