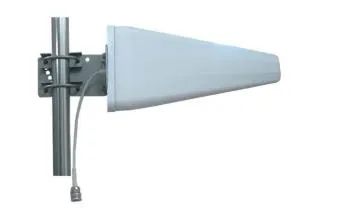

5g Lpda Outdoor Antenna for Sale

Product Description

Applications:
1.2G/3G/4G/5G/WLAN Wireless System
Features: Broadband;2.Sealed with Radome Strong protection ability

Electrical Specifications
Frequency Range	690-960MHz	1710-2700MHz	3300-3800MHz
VSWR	≤2.0	≤1.5	≤2.2
Gain	11dBi
Horizontal beam width	90°
Vertical beam width	60°
Front-to-back ratio	≥15dB
Polarization	Vertical
Intermodulation IM3 (2x33dBm)	≤-150dBc
Input Impedance	50Ω
Maximum input power	50W
Lightning protection	DC Ground
Mechanical Specifications
Input connector type	N-K
Installation	Pole-holding
Dimensions	405×210×65mm
Antenna weight	1.2kg
Radiating Element Material	AI
Working Temperature	-40°C to +65°C
Mounting hardware-mm	¢35~¢60
Rated Wind Velocity	60 m/s

FAQ Q: Can I get a sample of the 5g Lpda Indoor Coverage Antenna Hot Sales?
A: Absolutely! We have samples available for you to try out.
Q: Do you have the GNS S Antenna 100% assembled and in stock?
A: Unfortunately, we do not have the GNSS antenna pre-assembled and in stock. However, we will assemble them according to your specific order, including the samples.
Q: What is the delivery time for the antenna?
A: For samples, you can expect a delivery time of 3-5 working days. For quantities below 5K, the delivery time is 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We offer customized logo and design options for mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: May I visit your company?
A: Of course! You are welcome to visit our company at any time.
Q: How long is the warranty for your products?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty of half a year.
Product Description:
5g Lpda Indoor Coverage Antenna Hot Sales Introducing our 5g Lpda Indoor Coverage Antenna, the perfect solution for all your communication needs. With its wide frequency range of 698-4000MHz, this antenna ensures reliable and efficient signal reception.
Designed with the latest logarithmic periodic technology, our antenna provides exceptional performance and coverage. Whether you need it for personal or professional use, this antenna is perfect for any indoor setting.
Key Features:
Wide frequency range: 698-4000MHz Logarithmic periodic design for optimal performance Indoor coverage antenna Perfect for 5g networks With our customizable options, you can add your own logo and design to the antenna for a personalized touch. We offer flexible payment terms, including T/T, Paypal, and Western Union.
Visit our company, ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED, to see our wide range of communication antennas. We guarantee the highest quality and provide a one-year warranty for antennas and a half-year warranty for assembly cables and connectors.
Don't miss out on this hot sales item! Order your 5g Lpda Indoor Coverage Antenna today and experience superior signal reception like never before.
