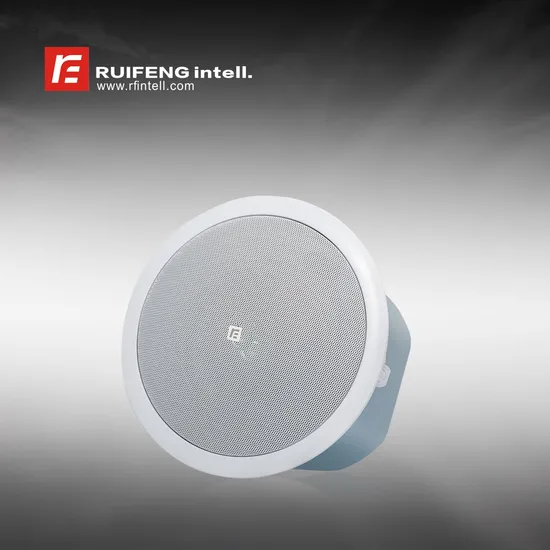

Conference Room Audio System Professional Ceiling Speaker
| US$30.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MQ-6C
Player Type
Without Player
Speaker System Audio Output Mode
Surround Sound
Finish
Aluminium
Control
Wired
Sound Channel
Depends on Installing Way
FM
Without FM
HDMI Quantity
HD7.1
Frequency Response
124Hz~20kHz
Sensitivity(1W/1m)
91±2dB
Rated Power(AES)
60W/16Ω
Transport Package
Carton Box
Specification
220x194mm
Trademark
RF
Origin
China
HS Code
8518220000
Production Capacity
2000PCS/Month
Product Description
Product name:Coaxial In-Ceiling SpeakerSpecification
| Frequency response | 126Hz-20kHz |
| Sensitivity(1W/1M) | 90±2dB |
| Rated Power(AES) | 60W/16Ω |
| Input mode | 100V(60W@167Ω,30W@333Ω,15W@667Ω) |
| 70V(60W@167Ω,30W@333Ω,5W@667Ω,7.5W@667Ω) | |
| LF Driver | 6.5" |
| HF Driver | 20mm horn voice coil |
| Diameter Out Circle | 220mm |
| Hole Depth | 194mm |
| Net Weight | 3.6kg |
Features
1.MQ series are coaxial two-way ceiling speakers ,MQ-8C uses 8"LF driver ,MQ-6C uses 6.5"LF driver ,with silk diaphragm for HF driver ,the sound is more softer and smoother;Coaxial sound source from one same point , sound reduction is more accurate and natural.
2.Voltage input and electric resistance are optional, voltage input (100V and 70V) amd electric reistance (16ohms) are available for different occasions. Installation is flexible with only hole size of the ceiling should be considered.
Application
Small to medium conference hall,Auditorium,Banquet hall,Music hall,Multi-function hall,Aux amplifying system.
Production dimension
