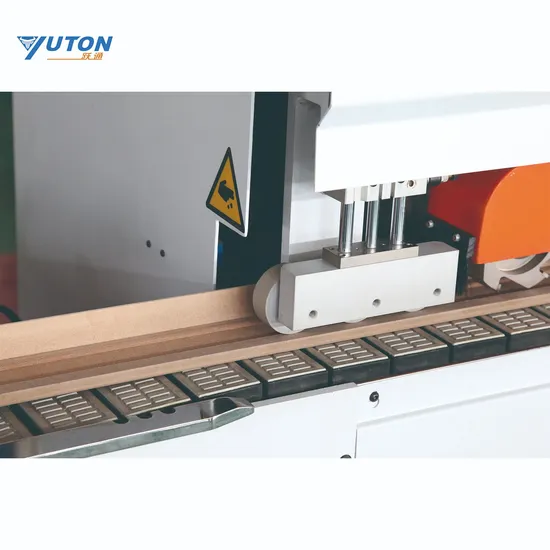

Automatic Door Frame L-Shaped Splicing Machine (can be customized according to customer requirements)

Product Description

Automatic L-shape splicing machine MDZ565
Function:
This machine is specially for the needs of door frame "L" shape architrave production, including the function of splicing, edge trimming, corner rounding & groove milling.
Equipped with material storage, automatic feed in & feed out.
Function of each model:
Workpiece:
Customer workshop
Motor power:

Pre-milling motor	2.2kw, 9000rpm
Double R motor	1.5kw, 12000rpm
Corner rounding motor	1.1kw, 12000rpm
Inner slot motor	2.2kw, 9000rpm
Buffing motor	0.37kw, 14000rpm

Both type of connection are available:
Technical specification:
Voltage: 380V, 50HZ, 3Phase

Panel thickness	12-25mm
Panel width	≥50mm (max 100mm when double R)
Panel length	900-2400mm
Belt width	15-50mm
Belt thickness	3-5mm or 3-10mm (max 5mm when step connection type) (max 10mm when straight connection type)
Min distance between panels	800mm
Feed speed of panel	24m/min
Air pressure	0.6Mpa
Overall dimensions	11500*1350*1650mm
Weight	2300kg
Voltage	380V, 50HZ, 3Phase
