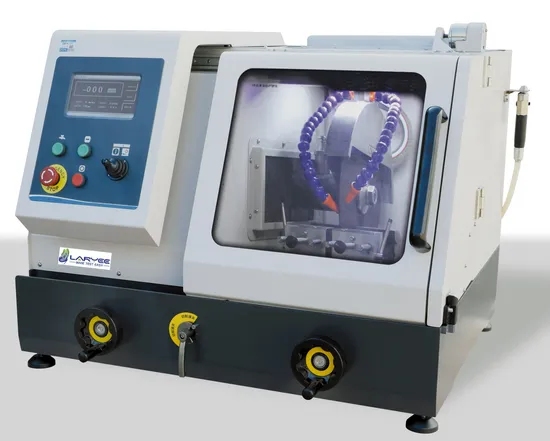

Metallographic Automatic Cutting Machine (ACM80/100)
| US$2,000.00-6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACM80/100
Type
Tool Grinding Machine
Processing Object
Cam
Controlling Mode
Manual
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Function
Cutting Metal Sample
Control
Automatic
Cutting Speed
2.25, 3, 4, 5, 7, 9, 12, 15mm/Min
Grinder Speed
2100rpm .
Transport Package
Wooden Case
Trademark
LARYEE
Origin
China Beijing
HS Code
84649011
Production Capacity
200units/Month
Product Description
Application:
ACM80/100 automatic cut-off machine has a large
cutting room, removable "T"-Slot work base, so it has a
function to cut rectangular and large sample, split fast
key vices, it is beneficial to users to clamp various shape
work piece
Features:
1.LCD screen shows all kinds of parameters.
2.Automatically/Manually cutting mode optional.
3.Large cutting room, tempered glass observation window.
4.Built in cooling system.
5.Equipped with 60 liters independent coolant tank.
6.Able to increase cutting depth and return the cutter after finishing automatically.
7.Wide range of cutting speed and stepless adjustable.
Specification:
| Model | ACM80 | ACM100 |
| Cutting depth speed | Max 15mm/min Stepless adjustable | |
| Grinder rotate speed | 2100rpm | |
| Max cutting diameter | Ø80 | Ø100 |
| Wheel specification | 350×2.5×32mm | |
| Power | 3P~380V, 50Hz | |
| Dimension | 780x800x600mm | 930x700x610mm |
