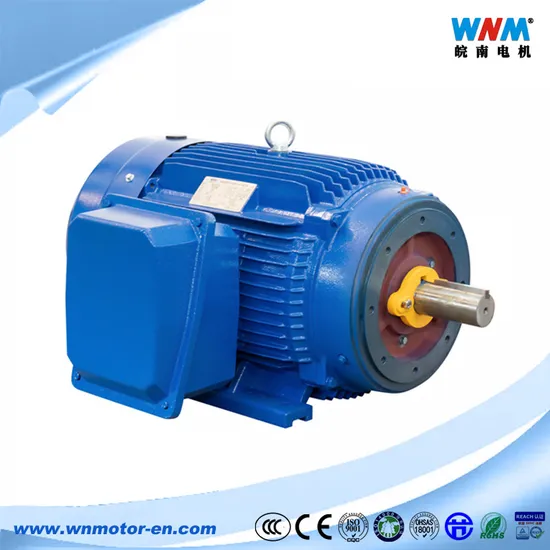

NEMA Premium Three Phase AC Electric Motor Induction Motors
| US$90.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NEP/NS
Number of Stator
Three-Phase
Function
Driving, Control, NEMA Motor
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CSA, NEMA
Brand
Wannan Motor
Frame Size
143t-449t
Output
1HP to 250HP
Efficiency
NEMA Premium
Poles
2.4.6
Duty
S1
Insulation
F,H
Enclosure
IC411-Tefc
Protection Degree
IP55, 56
Voltage
230/460V, 575V
Frequency
60Hz
Service Factor
1.15.1.2
Terminal
Left
Frame
Cast Iron
Mounting Type
Foot, C Flange, D Flange
Ambient Temperature
40°c, 1000 M. a.S.L
Transport Package
Carton/Wooden Case/Pallet
Specification
50*30.7*26.2inch
Trademark
WNM
Origin
Anhui, China
HS Code
8501520000
Production Capacity
6000PCS/Day
Product Description
NEMA Premium Three Phase AC Electric Motor Induction Motors---------------------------------------------------------------------------------------------
Applications
Typical applications include operations where continuous or frequent duty is required. Constant torque operation is 10:1, Variable torque operation is from zero to base speed. Premium-efficiency motors are designed to conserve energy over extended time period. Class F insulated, 1.15 service factor.
Features
Low-lose electrical grade lamination steel. Cast iron frames, IP55 protection, double lip seal keeps moisture and contamination. Over size bearing, spike resistant magnet wire, conduit box fully gasket and ground lug in conduit box. Stainless steel nameplate. C&D face kits available.
General Description Frame size: 140 ~ 440 Rated power: 1 to 250HP Voltage: 230V/460V, 575V Frequency: 60Hz Service factor: 1.15 Insulation class: F Efficiency levels: NEMA Premium Enclosure: TEFC Poles: 2,4,6 Degree of protection: IP55 Data Sheet
| Type | HP | Frame | Conn. | Code | Full load r/min | 460V Current at 460V | Torque | Efficiency | Power Factor | ||||||||
| Idle | Full load (A) | Locked rotor (A) | Full load (LB-FT) | Locked rotor % | Break down % | Full load% | 3/4 load % | 1/2 load % | Full load % | 3/4 load % | 1/2 load % | ||||||
| NEP143T2-2 | 1 | 143T | 2Y/Y | K | 3495 | 0.74 | 1.5 | 9.6 | 1.50 | 220 | 265 | 77.0 | 81.08 | 78.29 | 82 | 74.75 | 62.34 |
| NEP143T3-2 | 1.5 | 143T | 2Y/Y | K | 3490 | 0.87 | 2.0 | 13.8 | 2.26 | 215 | 250 | 84.0 | 84.34 | 83.46 | 84 | 79.20 | 68.59 |
| NEP145T-2 | 2 | 145T | 2Y/Y | J | 3485 | 0.90 | 2.6 | 18.7 | 3.01 | 210 | 240 | 85.5 | 86.16 | 85.91 | 85 | 83.61. | 74.69 |
| NEP143T2-4 | 1 | 143T | 2Y/Y | K | 1745 | 1.10 | 1.6 | 11.0 | 3.01 | 280 | 300 | 85.5 | 84.84 | 81.54 | 70 | 61.33 | 48.58 47 |
| NEP145T1-4 | 1.5 | 145T | 2Y/Y | K | 1735 | 1.32 | 2.2 | 14.1 | 4.54 | 250 | 280 | 86.5 | 86.93 | 82.77 | 74 | 66.41 | 53.42 |
| NEP145T2-4 | 2 | 145T | 2Y/Y | J | 1730 | 1.72 | 2.9 | 18.0 | 6.07 | 245 | 270 | 86.5 | 86.88 | 82.63 | 75 | 67.63 | 54.57 |
| NEP145T-6 | 1 | 145T | 2Y/Y | J | 1155 | 1.30 | 1.7 | 9.8 | 4.55 | 260 | 280 | 82.5 | 81.96 | 77.97 | 65 | 55.57 | 42.55 |
| NEP182T-2 | 3 | 182T | 2Y/Y | J | 3530 | 1.26 | 3.7 | 29.8 | 4.46 | 200 | 230 | 86.5 | 86.26 | 83.85 | 87 | 84.69 | 77.0 |
| NEP184T-2 | 5 | 184T | 2Y/Y | H | 3520 | 1.56 | 6.0 | 45.1 | 7.46 | 180 | 215 | 88.5 | 88.75 | 87.64 | 88 | 85.51 | 78.01 |
| NEP182T-4 | 3 | 182T | 2Y/Y | J | 1760 | 1.41 | 3.6 | 27.0 | 8.95 | 215 | 250 | 89.5 | 90.06 | 88.51 | 86 | 81.77 | 71.87 |
| NEP184T-4 | 5 | 184T | 2Y/Y | H | 1755 | 2.11 | 6.1 | 40.2 | 14.96 | 185 | 225 | 89.5 | 90.45 | 90.05 | 86 | 83.93 | 75.48 |
| NEP182T-6 | 1.5 | 182T | 2Y/Y | H | 1180 | 1.53 | 2.3 | 13.3 | 6.68 | 190 | 250 | 87.5 | 86.77 | 84.20 | 70 | 61.28 | 48.19 |
| NEP184T-6 | 2 | 184T | 2Y/Y | J | 1180 | 1.98 | 3.0 | 18.1 | 8.90 | 180 | 240 | 88.5 | 88.0 | 85.52 | 70 | 60.84 | 47.80 |
| NEP213T-2 | 7.5 | 213T | 2△/△ | H | 3535 | 2.18 | 8.8 | 59.5 | 11.14 | 250 | 290 | 89.5 | 90.02 | 88.85 | 89 | 89.52 | 84.33 |
| NEP215T-2 | 10 | 215T | 2△/△ | G | 3530 | 2.58 | 11.7 | 76.5 | 14.88 | 240 | 280 | 90.2 | 90.79 | 89.57 .57 | 89 | 87.69 | 84.29 |
| NEP213T-4 | 7.5 | 213T | 2△/△ | G | 1765 | 3.35 | 9.0 | 56.9 | 22.32 | 250 | 280 | 91.7 | 92.23 | 90.94 | 85 | 82.41 | 73.63 |
| NEP215T-4 | 10 | 215T | 2△/△ | G | 1765 | 4.18 | 12.0 | 77.9 | 29.76 | 240 | 200 | 91.7 | 92.27 | 91.13 | 85 | 82.09 | 72.98 |
| NEP213T-6 | 3 | 213T | 2Y/Y | J | 1185 | 2.35 | 4.2 | 28.4 | 13.30 | 185 | 230 | 89.5 | 89.35 | 87.78 | 74 | 66.83 | 55.17 |
| NEP215T-6 | 5 | 215T | 2Y/Y | H | 1180 | 3.41 | 7.1 | 42.1 | 22.26 | 170 | 215 | 89.5 | 89.20 | 88.31 | 74 | 68.4 | 57.98 |
| NEP254T-2 | 15 | 254T | 2△/△ | G | 3560 | 4.23 | 17.1 | 110 | 22.13 | 220 | 250 | 91.0 | 90.83 | 89.12 | 90 | 90.52 | 85.65 |
| NEP256T-2 | 20 | 256T | 2△/△ | F | 3555 | 4.97 | 22.9 | 140 | 29.55 | 220 | 250 | 91.0 | 91.16 | 90.03 | 90 | 89.71 | 85.40 |
| NEP254T-4 | 15 | 254T | 2△/△ | G | 1780 | 5.04 | 17.9 | 104 | 44.26 | 180 | 230 | 92.4 | 93.12 | 92.86 | 85 | 83.55 | 77.75 |
