100L 120L Plastic PE PP Packaging Box Tool Suitcase Blow Molding Machine

Product Description

Product Description

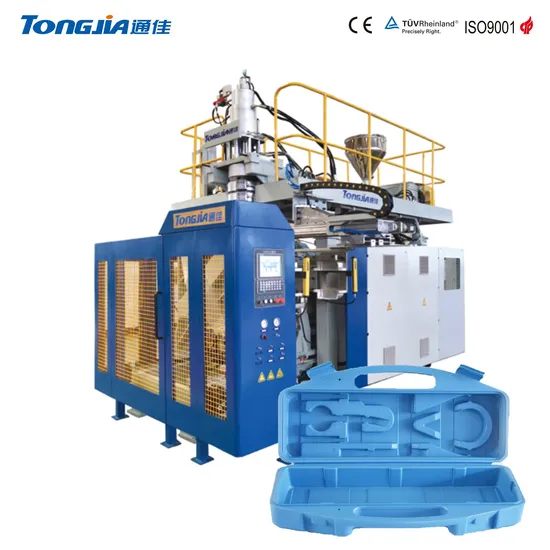

Tongjia TJ-HB30L-120L series hollow blow molding machine is mainly composed of frame, plasticization system, die
head, mold opening and closing mechanism, lifting device, hydraulic system, pneumatic system, cooling system, electrical
control system, etc.
This series of blow molding machine adopts international leading configuration, and is specialized in producing various
chemical plastic barrels, medical packaging, child safety seats, transportation facilities and tool bags, etc., to meet customer
needs for hollow products of 30-100L with different specifications.

Configuration
Clampingsystem	Diagonal double tie bar center clamping bi-directional synchronous high precision linear guideway clamping device
Extrusion system	Hardened face gear reducer + Imported frequency inverter
Die head system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve + hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy)

Parameters
Specifications	Units	TJ-HB30L	TJ-HB60L	TJ-HB80L	TJ-HB100L	TJ-HB120L
Material		PE.PP.ABS...	PE.PP.ABS...	PE.PP.ABS...	PE.PP.ABS...	PE.PP.ABS…
Max.product capacity	L	30	60	80	100	120
Die head quantity	Set	1	1	1	1	1
Machine dimension	m	4.85x3.5x3.7	4.9x3.5x4.0	4.9×3.5×4.3	5.7x3.9x4.5	5.7×3.9×4.5
Machine weight	Ton	10	13	14	16	17
Die-head
Accurroujator capacity	L	4.4	6.6/8	6.6/8	12.8/13.8	12.8/13.8
Max. diameter of die	mm	280	350	350	400	400
Die head heating power	KW	21	26	26	33/38	33/38
Die head heating zone quantity	zone	3	3	3	3	3
Clamping Unit
Clamping force	KN	220	260	280	450	450
Distance between platens	mm	400-900	450-1050	450-1050	500-1200	500-1200
Platen size(W×H)	mm	780x700	885x750	885×1000	1060x1060	1060×1230
Extruder unit
Screw diameter	mm	80	90	90	100	100
Screw L/D ratio	L/D	25	25	25	25	25
HDPE Plasticizing capacity	Kg/h	160	180	180	220	220
Screw heating zone quantity	zone	4	5	5	5	5
Screw heating power	KW	16	20	20	23	23
Extruder driving power	KW	37	45	45	55	55
Power
Installed capacity power	KW	96	113	113	141	141
Hydraulic drive power	KW	22	22	22	30	30
Cooling water consumption	m³/h	4	6	6	8	10
Cooling water pressure	Mpa	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Air pressure	Mpa	0.8	0.8	0.8	0.8	0.8
Air consumption	m³/min	0.8	0.8	0.8	1	1

About us
Series of automatic blow molding machine include: extrusion blow molding machine,plastic bottling blow molding machine,daily chemical packaging blow molder, lubricant oil blow molding machinery, pharmaceutical / medicine bottle blow moulding machine, food packaging bottle blow molding equipment, pesticide bottle blow molder machine, plastic stacking barrel blow molding machine, large hollow blow molding equipment and special-shaped hollow molding machine etc.
Shandong Tongjia Machinery Co., LTD,located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and Chinese Patent Star Enterprise.
With the mind of "Trust comes from quality" , Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
After Sales Service
1. 12 Hours----We will give you reply within 12 hours.
2. Pre-sale service----We provide your professional service in fluent English.
3. Delivery----1~3 months.
4. Free Design----Professional engineers, free designs.
5. Certificates----The third-party verification service provider.
6. After sales service----OEM service provide; Design service provide; Buyer label provided.
Packaging & Shipping
Standard export packaging: 1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.
2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinetand other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.
3. Reinforce easy-move part of the equipment.
4. Put desiccant before packaging to avoid rusting equipment during sea transportation.
5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced andprofessional exported wooden packaging manufacturing enterprises to make final package.
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online
