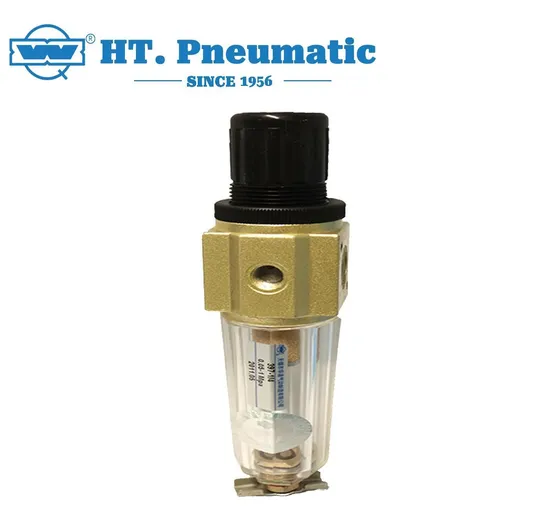

Apllied in Air Filter Combination Hnac Series Filter Regulator

Product Description

Product Description

Model	Specifications							Accessories		Drain function	Auto Drain Model
	Assembly			*Rated Flow (L/min)	** Port Size	Pressure Gauge Size (G)	Weight (kg)	Bracket	Pressure Gauge
	Filter	Regulator	Mist Separator
HNAC2000-01M	HNAF2000	AR2000	HNAL-2000	500	1/8	1/8	0.74	Y20L	G36-10-01	Manual drain	HNAC2000-01MD
HNAC2000-02M					1/4						HNAC2000-02MD
HNAC2500-02M	HNAF3000	AR2500	HNAL3000	1500	1/4	1/8	1.04	Y30L		a, Air shut off drain b. Manual drain	HNAC2500-02MD
HNAC2500-03M					3/8						HNAC2500-03MD
HNAC3000-02M	HNAF3000	AR3000	HNAL3000	2000	1/4	1/8	1.18	Y30L			HNAC3000-02MD
HNAC3000-03M					3/8						HNAC3000-03MD
HNAC3000-03M	HNAF4000	AR4000	HNAL4000	4000	3/8	1/4	2.14	Y40L	G46-10-02		HNAC3000-03MD
HNAC4000-04M					1/2						HNAC4000-04MD
HNAC4000-06M	HNAF4000-06M	AR4000-06	HNAL4000-06M	4500	3/4	1/4	2.47	Y50L			HNAC4000-06MD
HNAC5000-06M	HNAF5000	AR5000	HNAL5000	5000	3/4	1/4	3.82	Y60L			HNAC5000-06MD
HNAC5000-10M					1						HNAC5000-10MD

* Under the circumstance that supply pressure is 0.7MPa(7.1kgf/cm²) and set pressure is 0.5MPa(5.1kgf/cm²)
** Rc. and NPT port size are available.
Specification:
Outlook &Dimension:
Instudry Application

Company Profile
Established in 1956, Wuxi Huatong Pneumatic Manufacture Co., Ltd. is a strong and reliable partner for various industries. With our innovative R&D team, professional technical support team, and motivated sales team, we have been producing and delivering a large number of different valves, cylinders, air-filter components, and accessories to Germany, USA, Iran, Singapore, Russia Federation over 60 years. Huge investments in advanced technology of production and testing equipment, software and organization structure support us to offer top quality and good service. We are committed to be a leading provider and supporter to all our customers.
Huatong Pneumatic produces high-quality pneumatic and hydraulic cylinders as well as pneumatic valves, complete pneumatic systems, pneumatic / electrical stainless steel cabinets in all sizes and various custom-made accessories and spare parts according to our customer needs. We have satisfied customers for our custom-made pneumatics in China, USA, Germany, Italy, Holland, Australia and various other countries.
Certifications
FAQ
Q1: Are you a manufacturer or trading company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q2: How do you ensure your product and service quality?
A: Our processes strictly adhere to ISO 9001 procedures. Every product will be strictly tested before packing and shipping.
Q3: How can you customize cylinders?
A: Our engineer will design with your drawing or requirements, and send our drawing for you to check. Then, we will arrange production.
Q4: How can I make payment?
A: We accept T/T, L/C, Western Union.
Q5: What's your minimum order quantity?
A: All MOQS vary, depending on the products. Please feel free to check with us for specific items.
Q6: What about your delivery time?
A: It depends, but usually takes about 1-6 weeks.
Q7. What about shipping?
A: We suggest small batch by air/express and bulk by sea.
Q8. Do you have OEM/ODM service?
A:Yes. We OEM and ODM for some famous brand.
Q9. What's your policy if we want to distribute your products in local market?
A: Thanks for your interest and support. We would like to offer some Preferential policies, like discount in price, prepare stock and so on. Welcome to our factory and have a face-to-face talk.
Q10: What about your after-sales service?
A: We have a professional after-sales service team. Your feedback will be quickly responded and solved.
