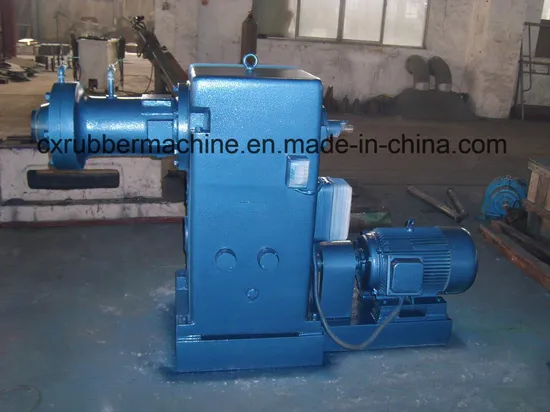

Inner Tube Extruder/Hot Feed Rubber Extruder

Product Description

Inner Tube Extruder/Hot Feed Rubber Extruder
1. SGS, ISO9001: 2008, CE certification3. Low noise, high safety and convenient5. Competitive price6. Customizable7. Delivery within 30 days.8. Sell to 126 countries on 6 continents.Rubber Extruder Machine with Frequency Converter
structural features: 1. This rubber extruder mainly consists of extrusion system, transmission system, heating and cooling system, electrical control system.
2. The machine body is installed with temperature mearsuring and indicating device. The feeding zone is equipped with side rolls for the enhancement of feeding capability.
3. The screw and bush of the extruder both adopt nitriding steel(38CrMoALA). The surface of the screw and the inner wall of the bush are both gone through nitrogen treatment to get enough strength and wear-resistance.
4. This rubber extruder adopts frequency conversion motor drive. The rotating speed can be easily regulated within the rotating speed range.
5. The whole extruder's features are compact, high in bearing capacity, stable in transmission, low noise, high efficiency.
6. The temperature of main machine and screw can be controlled by passing with steaming or cooling water.
Product Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design
4. Less maintenance needed
5. Easy installation
6. Environment protection
7. High safety configuration
8. High automation
9. High efficient and superior mixing performance.
10. Low power consumption & labor saving.
. Technical Parameters:

Type and spec.	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rotational speed(r/min)	20.27 35.47	27.40 53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	17	30	15.3~55	33.3~100	33.3~100
Overall dimension L×W×H(mm)	1600×675×1053	2050×735×1275	2770×665×1300	3585×814×1470	4549×1140×1750	4950×1150×1483
Capacity (kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

FQA-Problems for customer concern:
About machine performance quality
1. Q: How to guarantee the quality of outsourcing parts? A: First choice more than 4 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.2. Q: Which brand of electric part? A: Use world famous brands, Siemens, Omron, Toshiba, Schneider, ABB Customer can specify the brand.3. Q: Which PLC: A: Siemens, Omron, Mitsubishi4. Q: How to control the quality? A: There are inspectors for inspecting equipment quality and performance, after a ssembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.
About installation 1. Q: When the guide engineer arrive at customer's factory? A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.
About after-sales service 1. Q: What is the warranty time? A: 5 years after machine arrived at factory2. Q: How to solve the problem? A: Within half an hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.
