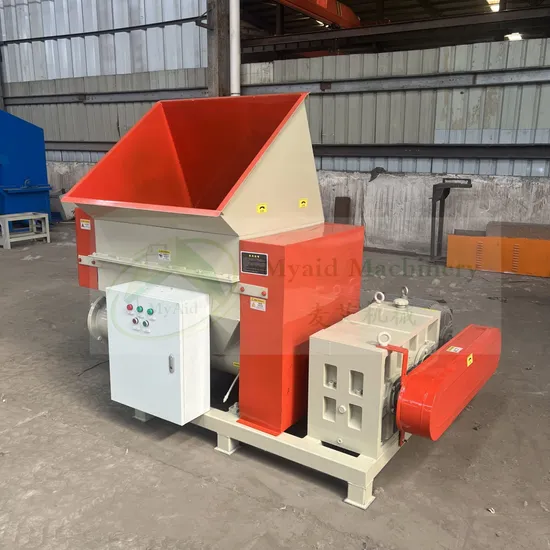

Expandable Polystyrene EPS Hot Melting Machine with Vertical Big Hopper

Product Description

The expandable polystyrene hot melting machine can crush and hot melt EPS/XPS/EPE/EPO etc foam materials.It works without heater at chamber end.It is different with traditional melt machine.
Benefits of 'Friction Produces Heat' 1) Almost needs no pre heating time,you can feed materials immediately after you turn on machine.Traditional lumps machine with heaters need about 20 minutes to heat chamber. 2) Almost no smoke to be produced. 3) Almost no smell to be produced. 4) Options to be with heater if the foam materials are wet.Cause heater can increase temperature to be higher inside chamber.
EPS melt Machine works with two crushing shafts in hopper.
Conveyor for feeding materials is optional.
Temperature control and frequency control is installed at control box.
Hard teech reducer and copper motor are on the hot melt machine.
Machine Advantage
Q: Why there is no heater at chamber?
A: The mechanical friction in the chamber can produce enough heat to melt the crushed foam materials.It is different with electric heater machine.
We can install heater too at this machine,we install ceramic materials heater.
Machine Parameter

Hopper Size	Capacity	Chamber Dia.	Shredding Shafts Qty	Motor Power	Machine Size
800*800mm	200kg/h	245mm	2 pcs	18.5kg	1600*1500*800
