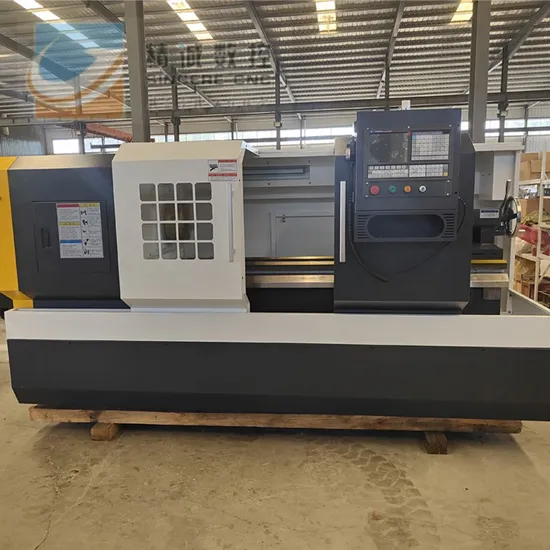

High Precision CNC Lathe with Good After Sale Service Lathe Machine CNC Lathe Machine Price

Product Description

Model: JCK6150
System available: FANUC, SIEMENS, GSK, KND,MLT, HCN etc.
Double spindle
2-axis function
Max machining diameter: 500mm
Mechanical spindle
Features
*Each axis equipped with imported high-precision linear guide,ball screws and precise bearings. * Using synchronous guide bush structure,realize high-speed and high-precision machining. * With guide bush or without guide bush switching flexiblely to meet different needs of processing. * Key components with gas sealing structure, oil and slag prevention, improving service life and stability. * Select high torque motor, high rigidity and high strength slipway for each axis and tool holder to meet the requirements of large cutting volume and high efficiency. * High scalability, tool quantities matched with different requirements of processing, reaching great cost-effective.
* Available with ER20 tools to increase the machining range.

Category	illustrate	Unit	parameter
Machine range	Maximum turning diameter of the machine tool	mm	Φ500
	Maximum turning diameter for machining shafts	mm	Φ290
	Maximum machining length of the machine tool	mm	1000/1500/2000/3000
Machine tool travel	Maximum machining length of the machine tool	mm	1000/1500/2000/3000
	X/Z - axis minimum displacement unit	mm	0.001
Main shaft	Spindle hole diameter	mm	Φ82
	Number of spindle stages		Three speed variable frequency
	Maximum spindle speed	rpm	45-260,140-800,280-1600
	Spindle end		A2-8
	Main motor power	KW	11
	Frequency converter	KW	11
	X/Z - axis motor torque	N.M	5/7.7
	X/Z - axis fast movement speed	M/Min	6/8
Tool carrier	Number of tool positions		8 - station electric tool holder
	Tool size	mm	25*25
	Repeated positioning accuracy of tool holder	mm	≤0.004
	Tail seat inner hole diameter	mm	Φ75
	Tail seat sleeve stroke	mm	130
Other	Tailstock top taper		MT-5#
	Mechanical weight	kg	2600
	External dimensions of machine tools (length x width x height)	mm
	Electricity demand (power/current)	KW/A	15KW/20A
	Main motor		11KW
	Spindle bearing		NN3024/P5 W33;234424BM/P5;NN3020K/P5W33
	Ball screw		2505*500;4010*1700 (Han River of China)
	Ball Screw Bearing		X:76020404TN/P4 Z:760307TN/P5;6206RZ
	Electric knife holder		Vertical four-station CNC tool holder

Shandong Weifang SINCERE CNC Machine Tool Co., Ltd. is located in the famous kite city of the world - Weifang City, founded in the spring of 2003. Its products are of excellent quality, leading technology, reasonable price and considerate service; The company for production, sales, service has many years of practical experience, is a professional machine tool numerical control industry pilot enterprise in Shandong province. Since its establishment, relying on the "quality assurance, integrity-based, continuous innovation, the pursuit of excellence" business philosophy and perfect service system, the company has rapidly developed into a well-known set of production, sales, service as one of the professional CNC equipment production enterprises; And take social responsibility as its own responsibility, the "integrity, good, innovation" as the constant pursuit and goal, sincere people are willing to work with the majority of friends to create a better tomorrow!
Our Advantages
1.High quality/Reliable/Robust machines2.Service and support are top priorities3.Quickly response 7/244.Customized Machine According to Customer's Requirements5.Integrated solution provider6.More details please contact us, or send your drawings for professional recommendations
After Sales Service
Service
Service and support are a top priority. Our engineers and after sales team are trained to provide uncompromising customer service and support.
Training policy
Pre-training is available at our factory freely for our clients, video or remote training can also be provided. We charge for local training on the basis of travel expense + man day.
Warranty policy
Warranty period: 12-month. It is free of charge if it is damaged under normal use during warranty period. If the equipment is damaged due to improper operation, we charge material fees within one year. After one year, it will charge material fees and Labor costs.
Installation and commissioning
The installation and commissioning process of CNC lathe includes the following steps:
Machine tool in place: place the machine tool in the predetermined position, make sure the foundation is level and the machine tool is horizontal.
Appearance inspection before energizing: Check whether the machine tool electrical appliances, such as relays, contactors, fuses, servo motor speed, etc., are loose, and the connectors with locking mechanism should be locked. Also check the appearance and structure of the machine tool to make sure there are no damaged or missing parts.
Power on test run: according to the requirements of the manual, carry out power on test run. Observe the CRT display until a normal screen appears.
Functional debugging: Verify the normal operation of each functional part of the machine tool, such as spindle, feed axis, tool magazine, lubrication system, etc.
Precision debugging: carry out precision debugging of the machine tool, including geometric accuracy, positioning accuracy and repeat positioning accuracy.
Parameter setting: according to the requirements of workpiece machining, set the machine parameters, such as tool compensation, coordinate system setting, etc.
Empty running test: Under the automatic running mode, carry out empty running test for the machine tool to check the operation of each component.
Load test: Under automatic operation mode, carry out load test to check the running performance of the machine tool under load condition.
Acceptance and delivery: After the machine is commissioned and qualified, acceptance and delivery will be carried out, and the necessary operation and maintenance training will be provided.
During the whole installation and commissioning process, pay attention to safety, comply with the operating procedures to ensure the safety of the machine tool and personal safety. At the same time, operate in strict accordance with the instructions and technical requirements provided by the machine tool manufacturer to ensure the normal operation and service life of the machine tool. Other
1.What's the main products of your company?
A: We manufacture economical CNC lathes, which are mainly used to produce small, medium and large metal parts.
2.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
3.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
4.What is your leading time?
A:Typically it takes about 15-90 days depending on quantity and model.
5.What's the Payment Terms?
A: Our practice is T/T ,30% deposite ,70% balance before shipment.
6.What's the shipment Terms?
A: By sea, by train, by truck, by air(metal parts samples).
7.What's the offering Terms?
A:FOB/QingDao.
8.Where is your factory located? How can I visit there?
A :Our company is located in the north of Lijia Village, Fushan Town, Weicheng District, Weifang City, beautiful Shandong Province, we warmly welcome your visit!
