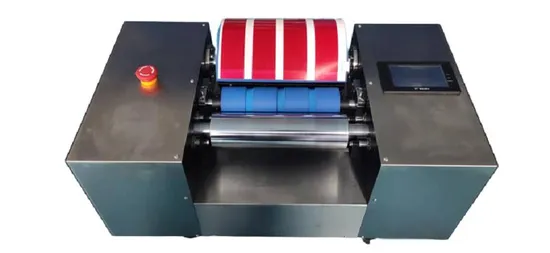

Four-Color Offset Plate Display Color Instrument UV Rubber Roller

Product Description

Product Description A four-color offset plate color developer is a device used in the printing industry to accurately measure and display the colors produced by a four-color offset press.Offset printing is a common printing method that uses four primary colors (cyan, magenta, yellow and black) to produce a variety of colors. Offset plate display color meters allow printers to monitor and adjust the colors produced by the press to ensure accurate and consistent color reproduction.
The instrument typically consists of a light source, a sensor, and a display screen. The light source illuminates the printed sheet, and the sensor measures the reflected light. The instrument then analyzes the color data and displays the color values on the screen, allowing the printer to compare them to the desired colors.
Detailed Photos
Product Parameters

Model Number	BST-ZS-4A
Ink leveling mode	motor automatic ink leveling
Printing pressure	-1 ~ +1mm manual adjustment
Ink leveling speed	400, 550, 700 RPM.
Color exhibition speed	10, 15, 20 RPM
Printing roller width	225mm
Effective area of color bar	45mm x 210mm (4 pieces)
Rubber roller	Germany imported rubber (VU70)
