Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
configuration
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
name
VMC1580 CNC Machining center high precision metal
Max. spindle speed
8000rpm(Optional:10000 )
Distance from spindle axis to column sur
810mm
Transport Package
Ply Wood Case with Steel Base
Specification
4300*3200*3100mm
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
4500.00cm * 3300.00cm * 3200.00cm
Package Gross Weight
13500.000kg
Product Description

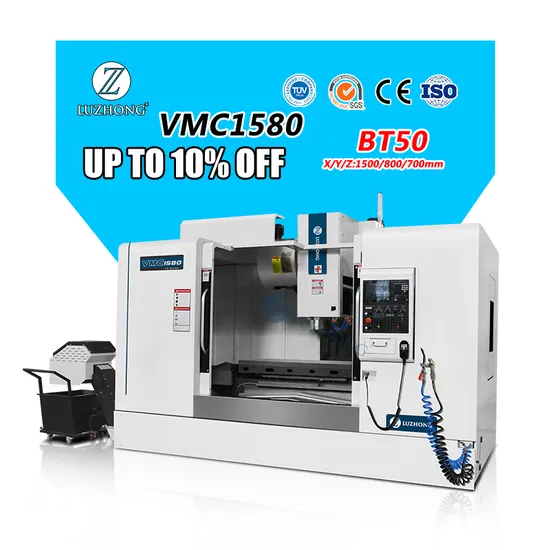

VMC1580 vertical machining center CNC milling machine
Product Description
The main performance characteristics:
High quality resin sandTaiwan spindleAutomatic lubrication systemChip conveyor at optional
Product Parameters
SPECIFICATIONS | Units | VMC1580 |
Table size | mm | 1700*800 |
X axis travel | mm | 1500 |
Y axis travel | mm | 800 |
Z axis travel | mm | 700 |
Max. worktable load | kg | 1500 |
T slot(number-width*pitch) | - | 5-22*135 |
Max. spindle speed | rpm | 6000/8000 |
Spindle taper | mm | BT50 |
Main motor power | kw | 18.5 |
X/Y/Z rapid traverse speed | m/min | 15/15/12 |
Cutting feed speed | mm/min | 1-5000 |
Guide rail type | - | |
Distance from spindle axis to column surface | mm | 810 |
Distance between spindle nose and table surface | mm | 130-830 |
Positioning accuracy | mm | 0.01 |
Repeat positioning accuracy | mm | 0.0075 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | 112/200 |
Max. tool weight | kg | 18 |
Machine weight | kg | 13000 |
Overall dimension(L*W*H) | mm | 4300*3200*3100 |
Detailed Photos
| |
MACHINE CONSTRUCT High strength high quality HT300 cast iron | CONTROL SYSTEM Standard:GSK25i / KND1000 control |
| |
TAIWAN PRECISION SPINDLE 1. Taiwan spindle BT50 6000rpm 2. Passed dynamic balance ISO rating test | TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds. |
| |
LEAD SCREW AND COUPLING 1 China famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected | TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI |
| |
TOOL UNCLAMP CYLINDER Taiwan spindle Tool unclamp cylinder | AIR STORAGE TANK Air storage tank to ensure the stability of spindle tool change |
| |
AIR GUN AND WATER GUN High-pressure air guns and high-pressure water guns | PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components |
| |
SCHNEIDER ELECTRICAL COMPONENTS1. with Schneider safety electrical components 2. Quick plug as standard | AIR CONDITIONERwith Industrial electrical cabinet air conditioner. Cooling the electric box better . |
| |
LUBRICATION SYSTEMHERG Automatic centralized lubrication device . | COUNTERWEIGHT Use a nitrogen balance cylinder to counterweight |
| |
STRONG CHIP PUNCHINIG Standard with strong chip punching function . | TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing |
| |
BT50 MILLING CHUCKStandard with BT50 milling chuck . | LOCKING KNIFE BLOCKStandard with lock knife block . |
Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes
30+ years CNC machine manufacture experience factory
24 hours online service at any time
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries .
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )
