150tph Ceramic Sand Granulator Production Line Price

Product Description

150tph Ceramic Sand Granulator Production Line Price
Features of Ceramic Sand Production Line
1. High capacity
At the beginning of the operation, production output can be increased by more than 20%.
2. Saving energy and protecting environment
It can effectively reduce exhaust emission. Dust emission concentration is less than 50mg/Nm3.
3. Reliable product quality
The ball forming rate is high and ceramic sand is of great strength.
Production Process Introduction
After crushed by jaw crusher and hammer crusher, bauxite is transferred into the mixing hopper, and then goes into the ball mill with other raw materials. Raw materials are ground into powder in the ball mill. Power separator is used to control its fineness, and then the raw material powder is transferred into the storage facility. Raw materials go into the granulator in which pellets of various particle sizes are made. These pellets are transported by belt conveyor into screening device. Qualified pellets are fed into the rotary kiln for calcining into qualified ceramic sand. Larger pellets will return to the grinding process. After cooled in the cooler, ceramic sand with different particle sizes is transported into rotating sieve and separated, and then packed respectively in bulk bags.

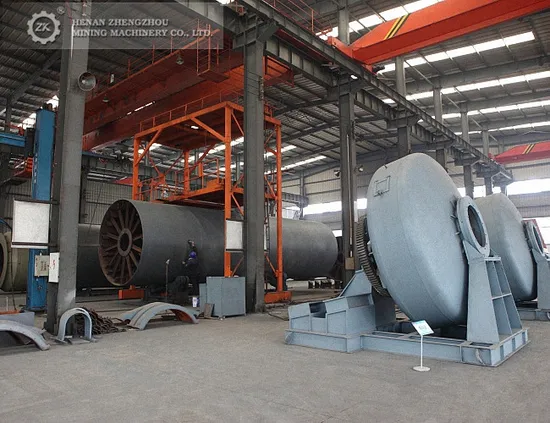

Main Equipments for Ceramic Sand Production Line
Rotary kiln, ball mill, rotary dryer, bag filter, ceramic sand granulator, new-type granulator, rotary cooler and so on.
The process flow chart is shown as follows
The use of ceramic:
Ceramic has excellent properties such as low density, high pressure tube, high porosity, softening coefficient, good frost resistance, excellent alkali aggregate reaction and so on. Especially due to the small ceramic density, internal porous morphology, composition more uniform, and possessed a certain strength and solidity, which has light weight, corrosion resistance, frost resistance, and good seismic isolation and other multi-functional features. The use of these excellent properties of ceramic, it can be widely used in building materials, gardening, food and beverage, fire-resistant insulation materials, chemicals, petroleum and other sectors, increasingly wide application areas, continues to expand. In the beginning of the ceramic invention and production, which is mainly used for building materials, as technology continues to evolve and people on a deeper understanding of the performance of ceramic, ceramic materials applications already exceeds the scope of this tradition, expanding its application of new fields. Now in the application of ceramic building materials, and has fallen from 100% to 80% in other areas, accounted for 20%. With the continuous development of new uses for ceramic, its share in other areas will gradually increase.
A variety of ceramic materials, the use of various types of clay, slate, shale, coal, and industrial solid waste, etc., through the ceramic sintering, is generally used to replace concrete gravel and pebbles. Ceramic sand has a low density, excellent thermal insulation, impermeability, excellent alkali aggregate reactivity, low water absorption, frost resistance and good durability, and many other advantages.

model	drum size	Speed	bell weight	feed size	output size	Capacity	Power
	(m)	(r/min)	(t)	(mm)	(mm)	(t/h)	(kw)
MQZ1224	1.2X2.4	31	4.8	0-20	0.07-0.6	0.4-6.8	37
MQZ1645	1.6X4.5	27.5	14	0-25	0.07-0.4	4-24	95
MQZ2745	2.7X4.5	21.9	43	0-25	0.07-0.4	13-150	320
MQZ3645	3.6X4.5	17.8	90	0-25	0.07-0.4	120-220	1000
MQZ3660	3.6X6.0	17.8	120	0-25	0.07-0.4	50-230	1250

FAQ:
Q: For providing you the suitable quotation we need to know the following information:
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models. Reply message you will get 5% discount price.
Q: What about Warranty of the products?
A: ZK CORP Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose our Machinery:
A: 1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3. Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
